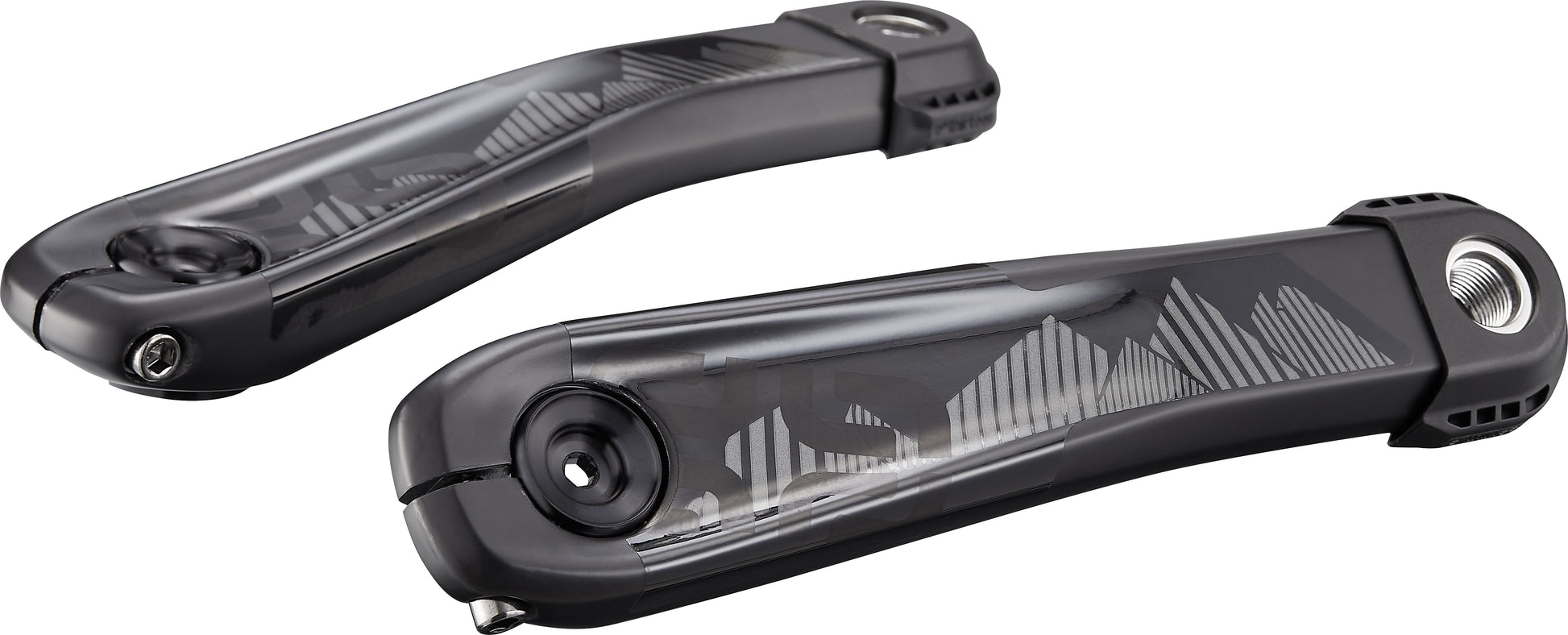

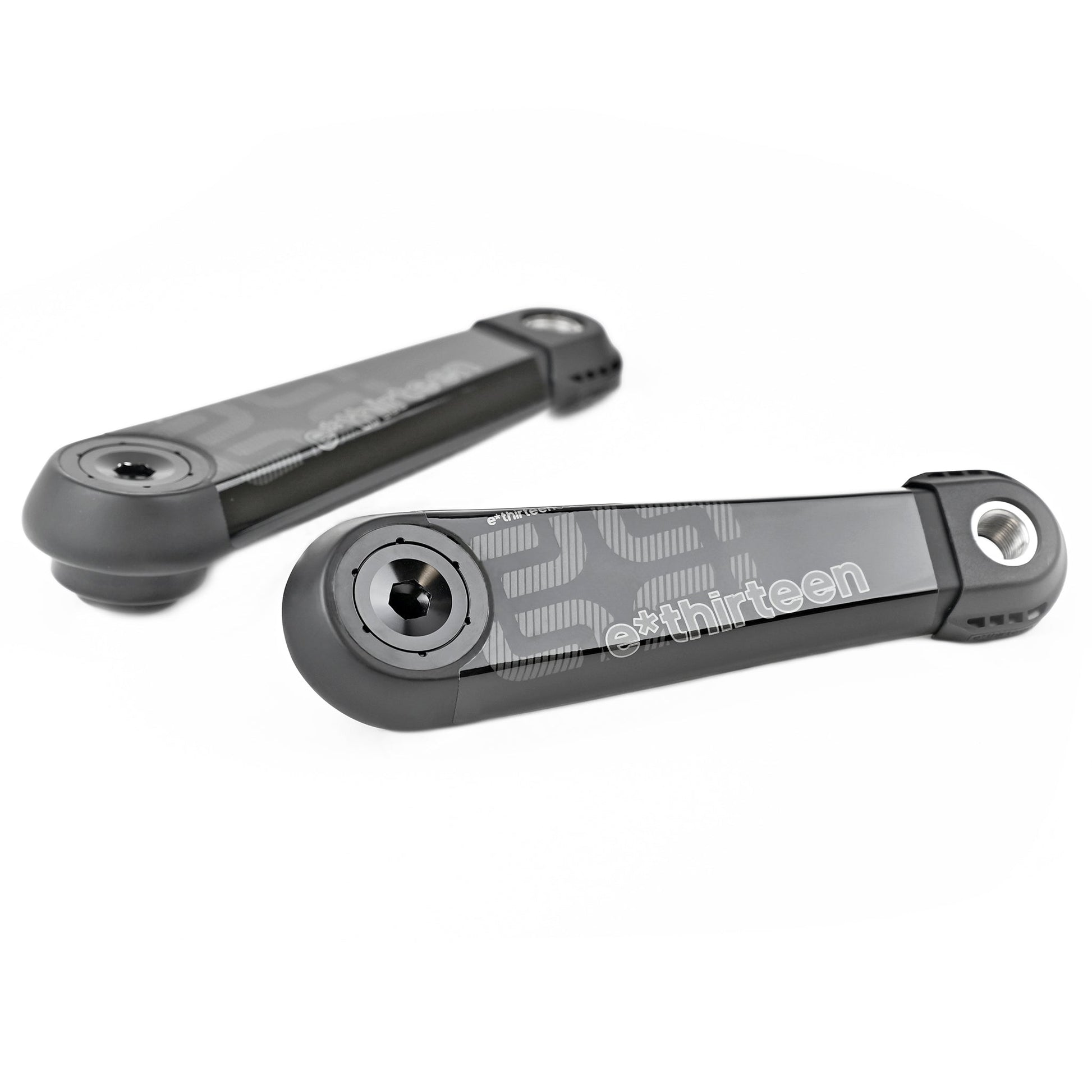

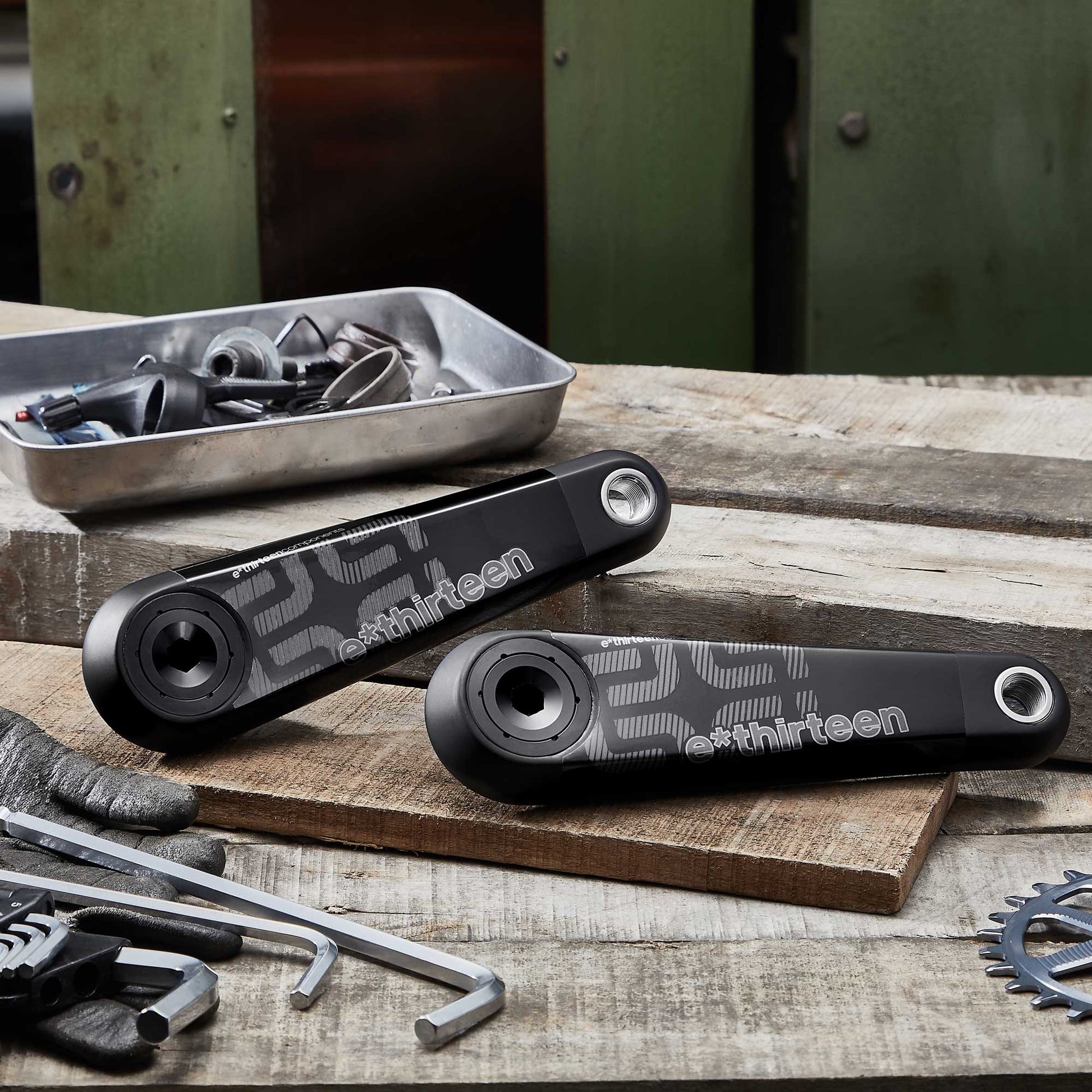

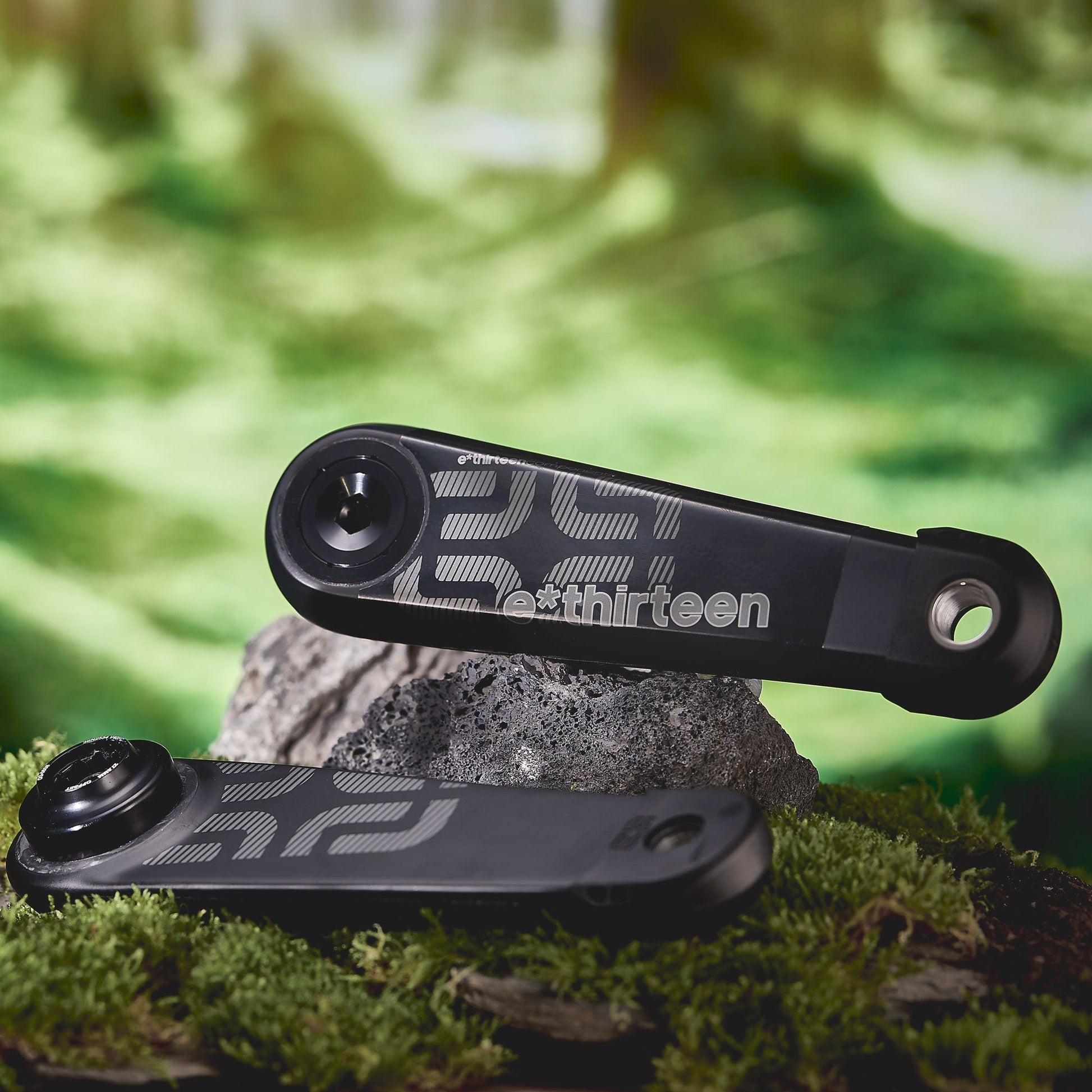

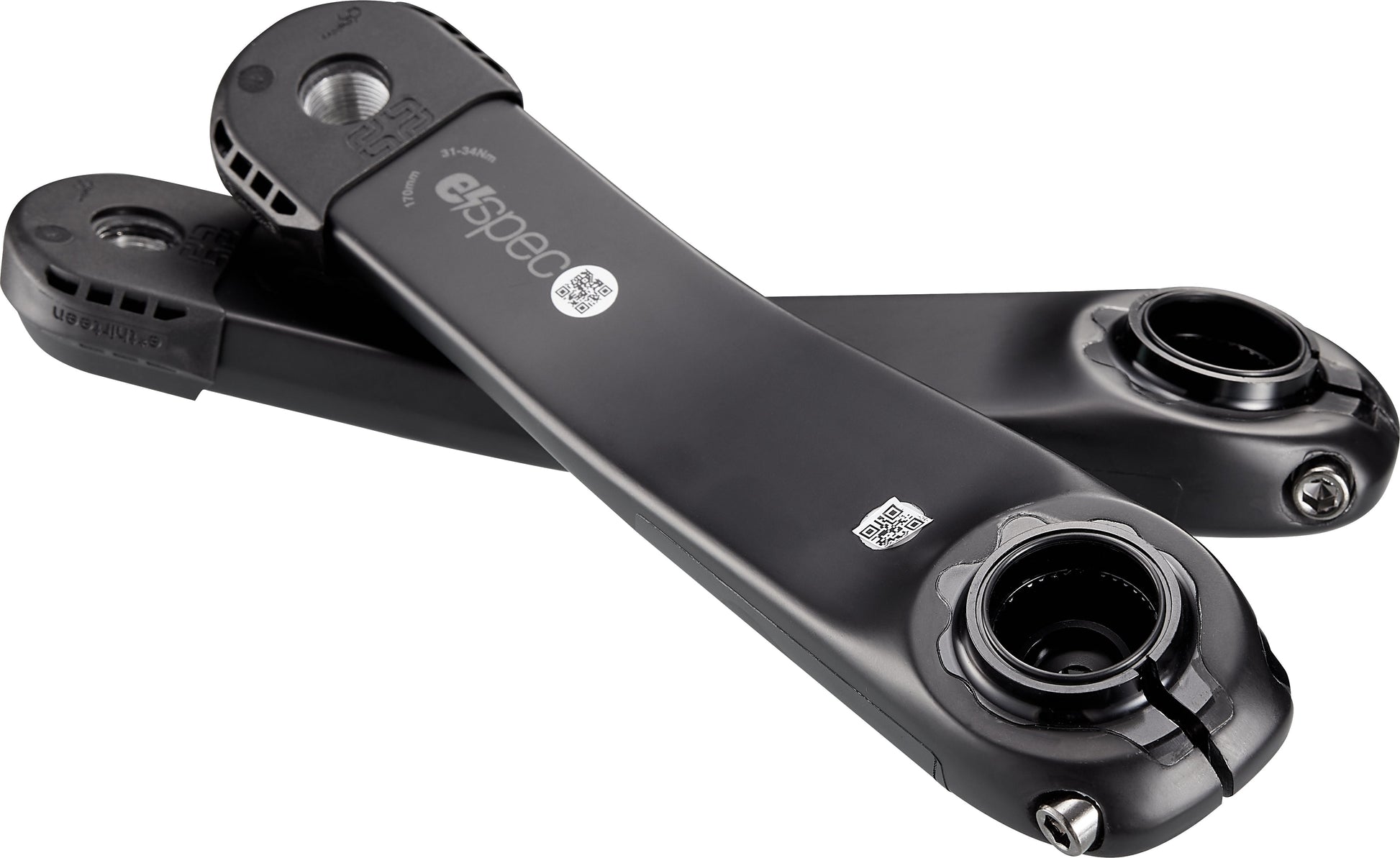

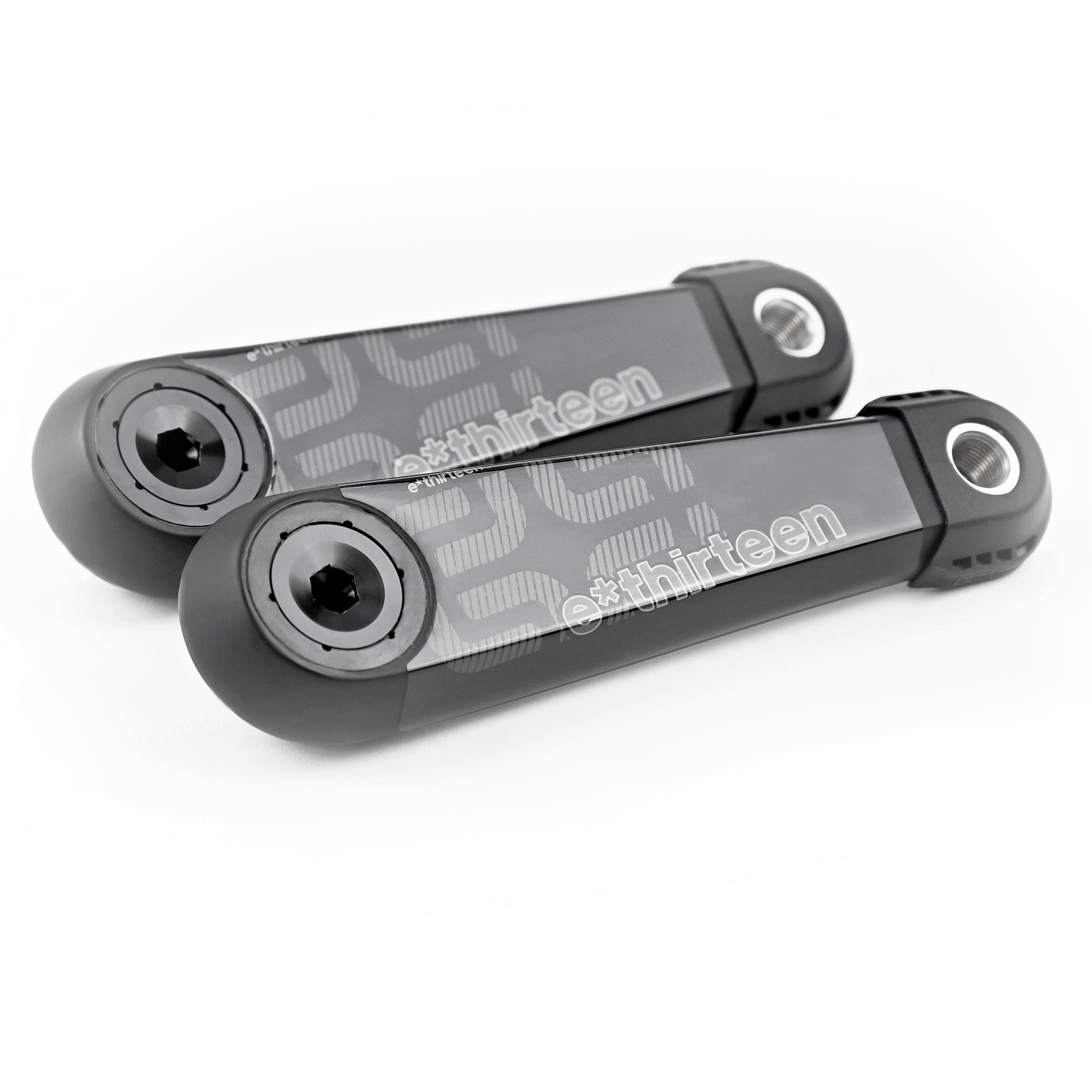

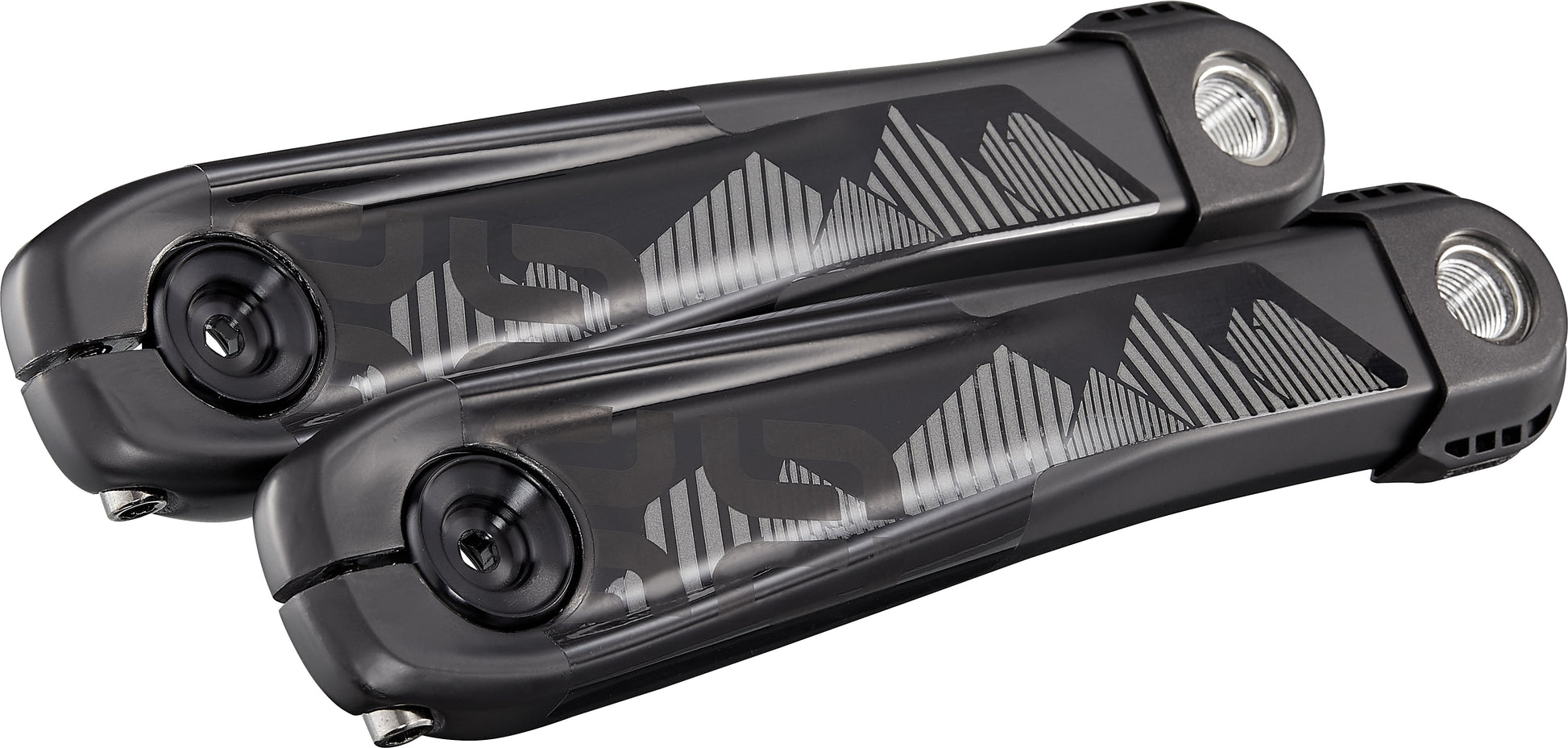

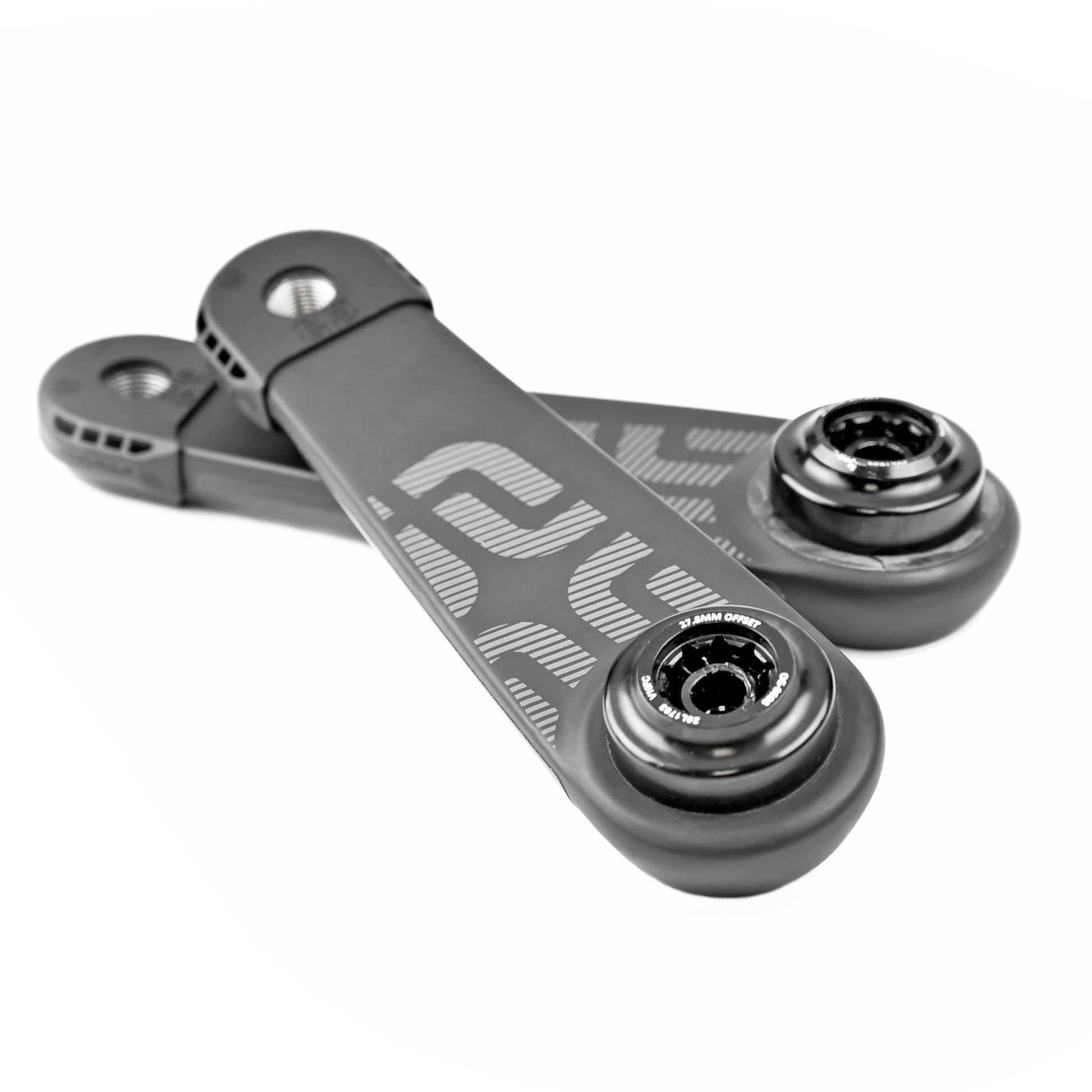

We're now bringing our World Cup proven technology to the eBike marketplace, with our e*spec Race Carbon Cranks.
In contrast to our Gen3 carbon cranks, the Q Factor, overall profile, and volume of our Gen4 cranks has been greatly reduced. e*spec cranks have an 8mm self-extractor built in to both arms for easy removal of press-fit versions.
Available for Bosch Gen4 CX, Brose S Mag drive, Fazua Ride 50, TQ and Shimano EP8.
Chainring
Color
Stealth Black w/Protective Vinyl
Compatibility
Bosch CX Gen4
Brose S Mag also compatible with Fazua and TQ Motors
NOT compatible with Fazua Ride 60 with ETOR spindle
Brose S Mag also compatible with Fazua and TQ Motors
NOT compatible with Fazua Ride 60 with ETOR spindle
Features
World Cup proven layup. Slim Q factor, overall profile, and volume. 8mm self-extractor in each arm.
Included
Crankset, APS Adjuster, Installation Tools, Crank Boots (x2), Sticker, User Manual
Length
160mm, 165mm, 170mm
Material
World-Cup DH-rated layup and construction, compacted carbon fiber, with additional 3k added to front and rear faces of crank for impact resistance
Self Extractor
Yes
Spindle
INTERFACE: Bosch CX Gen4 or Brose S Mag
Weight
Bosch Gen 4
160mm: 397g - 165mm: 400g - 170mm: 402g
Brose S Mag Fazuza
160mm: 349g - 165mm: 352g - 170mm: 354g
Shimano EP8
165mm: 391g- 170mm: 397g
160mm: 397g - 165mm: 400g - 170mm: 402g
Brose S Mag Fazuza
160mm: 349g - 165mm: 352g - 170mm: 354g
Shimano EP8
165mm: 391g- 170mm: 397g
Guaranteed to be free from defects in materials or workmanship for 5 years after original purchase
