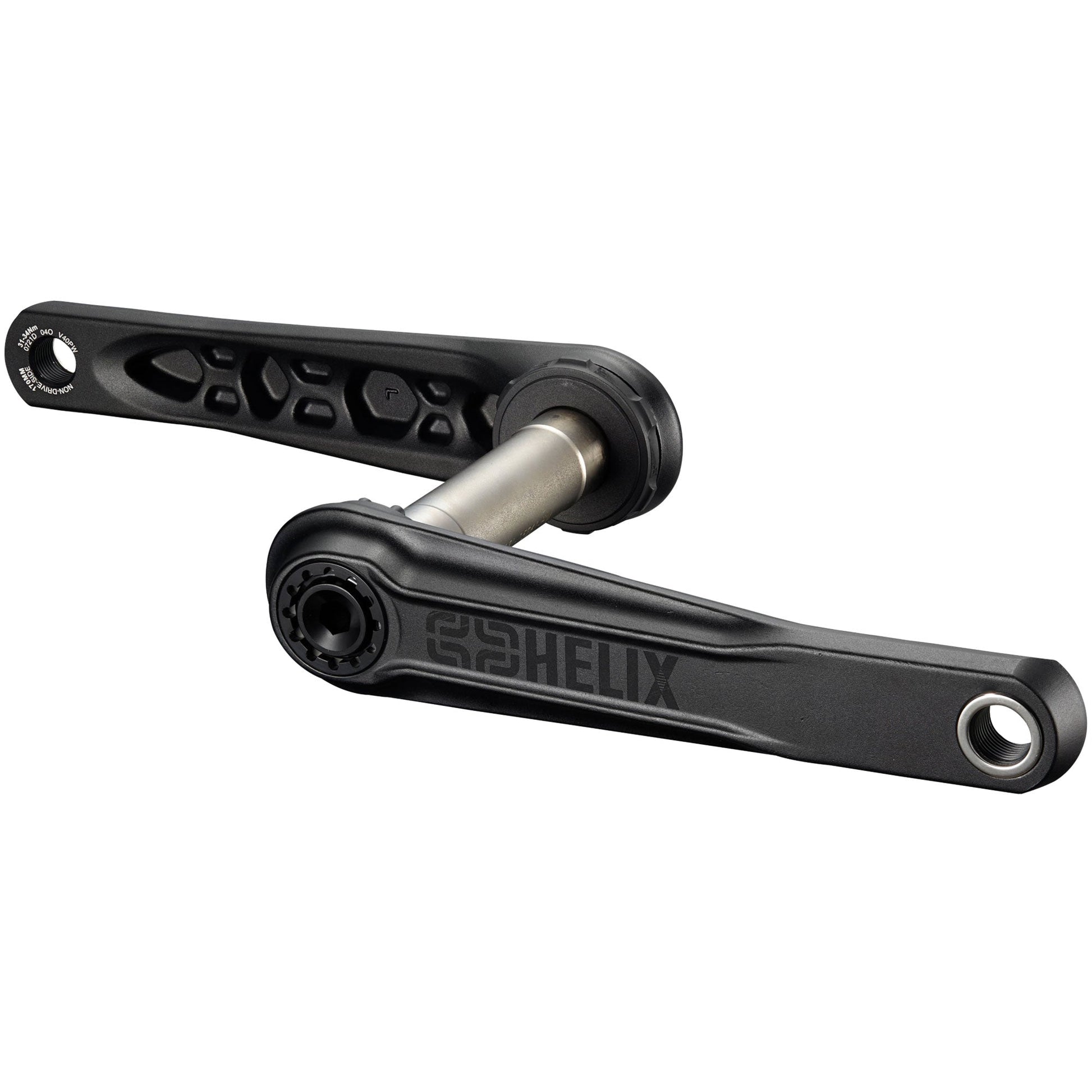

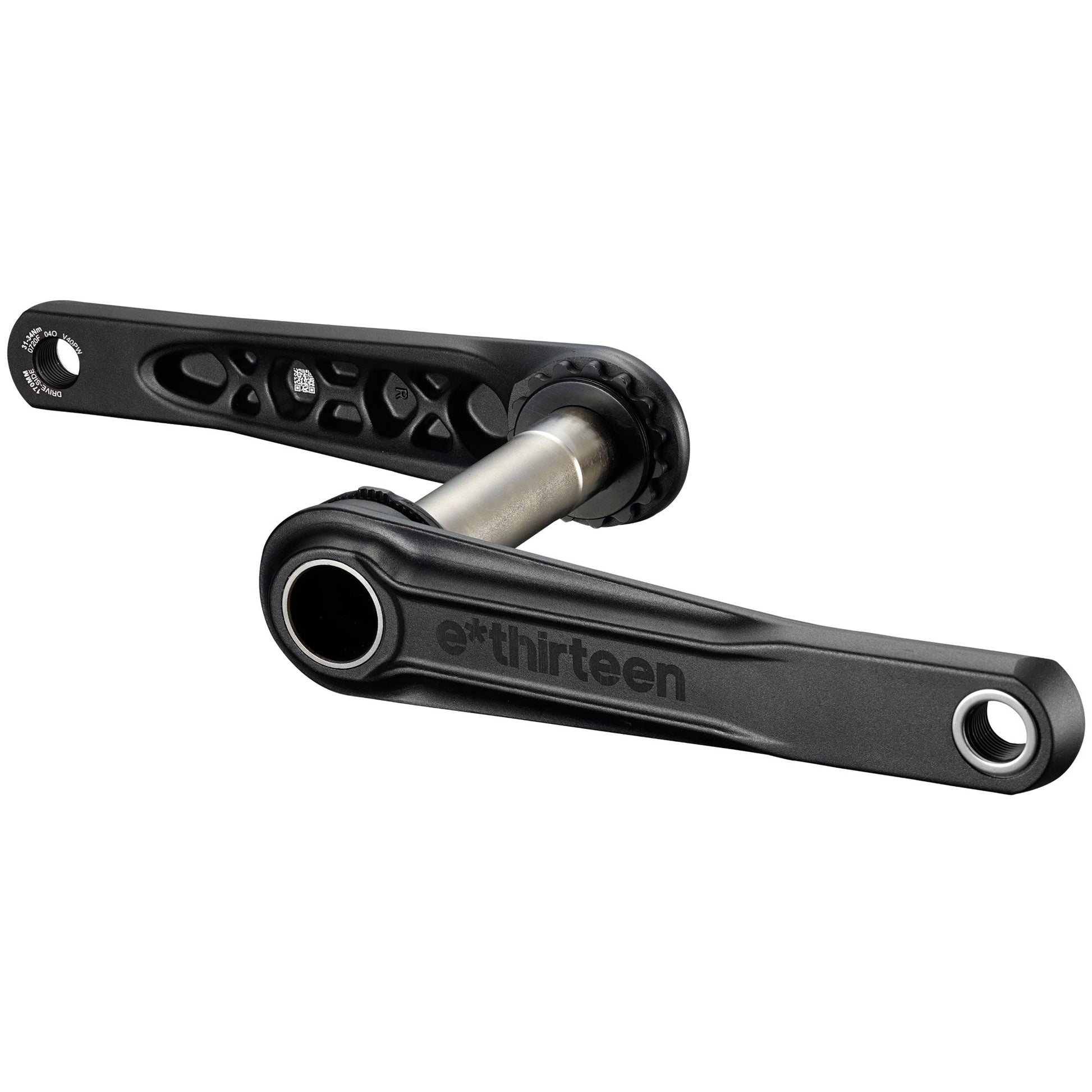

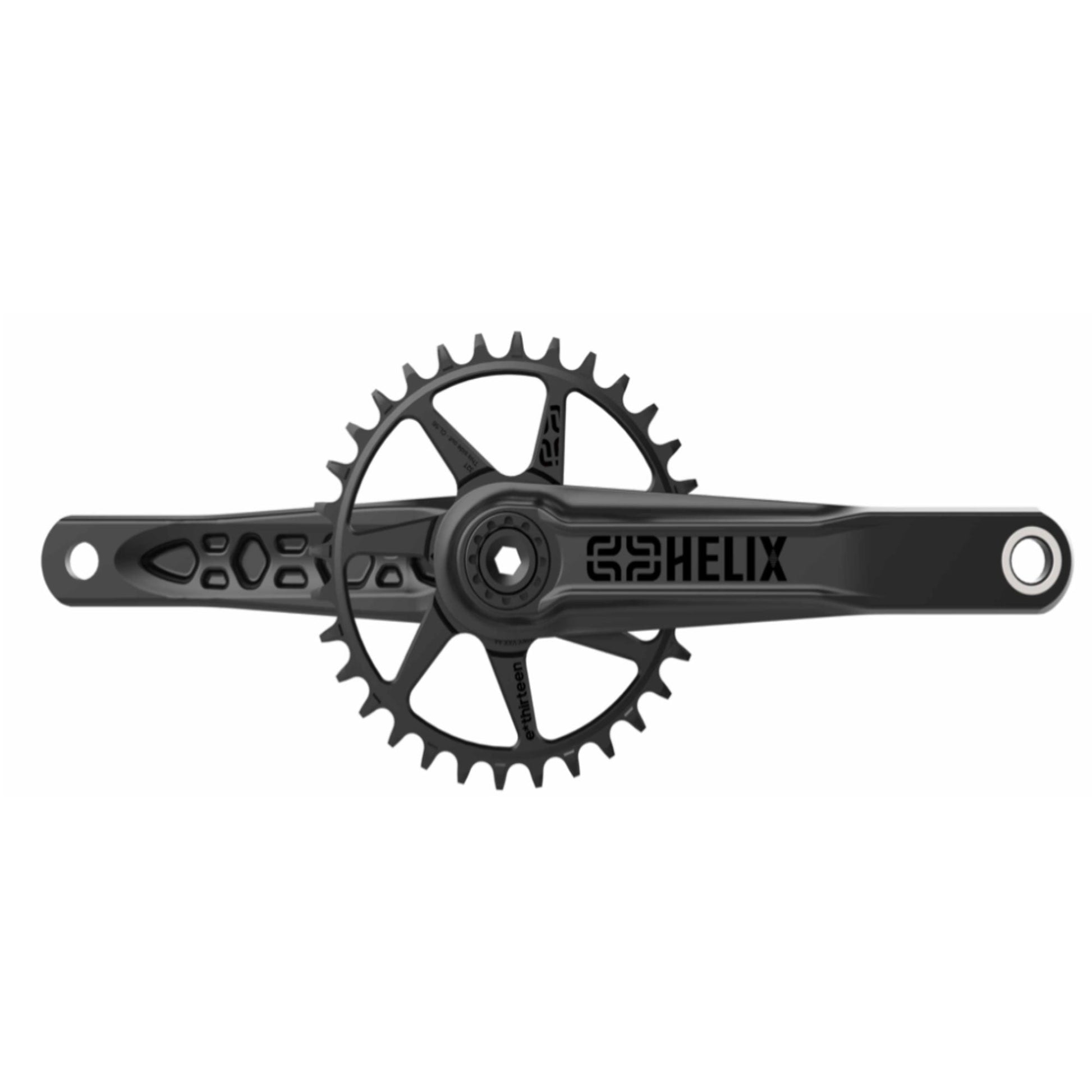

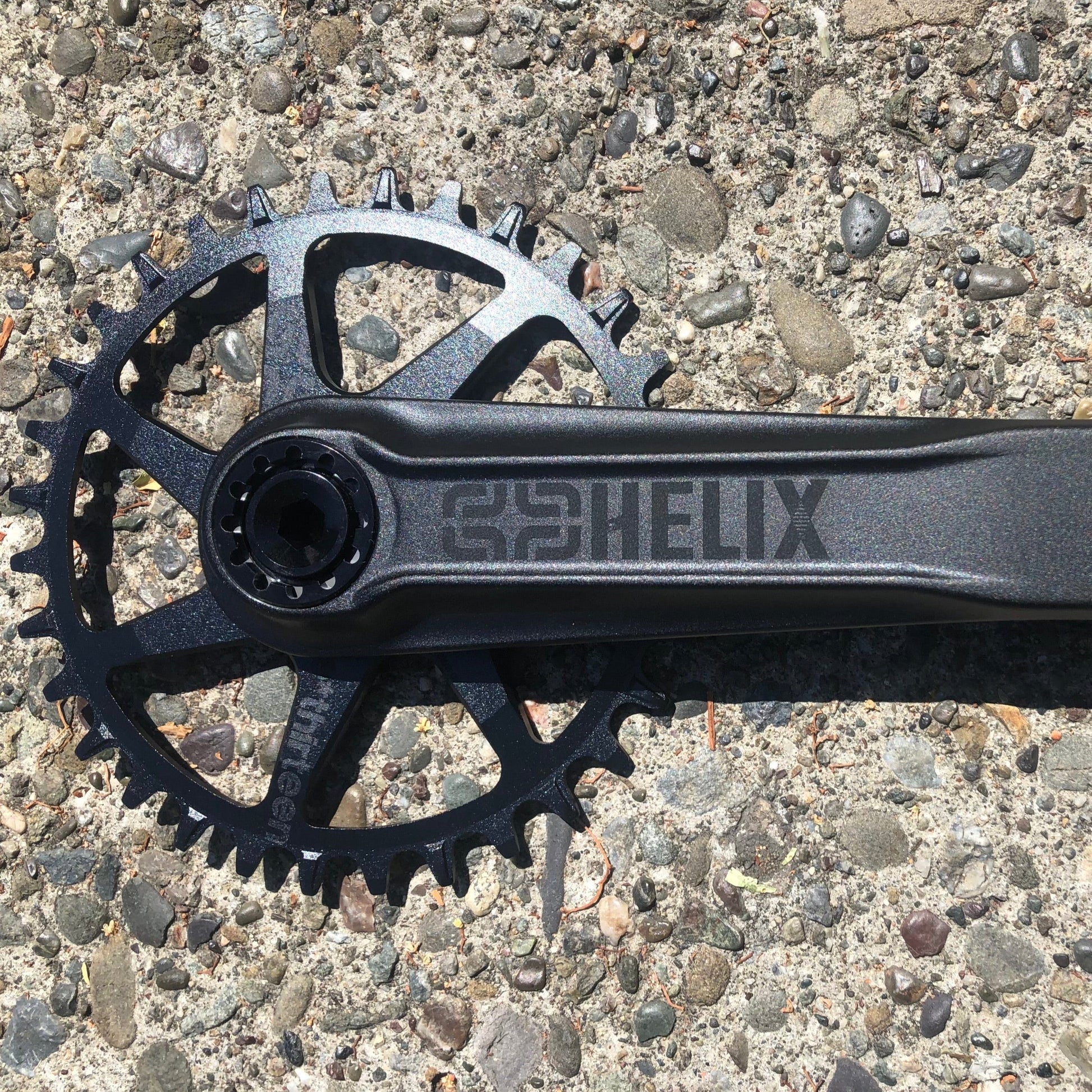

Helix Core Alloy Crank

Helix Core Alloy Crank

Starting at
Regular price £129.95 GBP
Sale price £129.95 GBP Regular price £129.95 GBP
Sale Sold out
Tax incl. Shipping policy Free Domestic Shipping at $100.00

SKU:CS4HBA-100

Size
View full details
Lighter, stronger and more value than the competition.

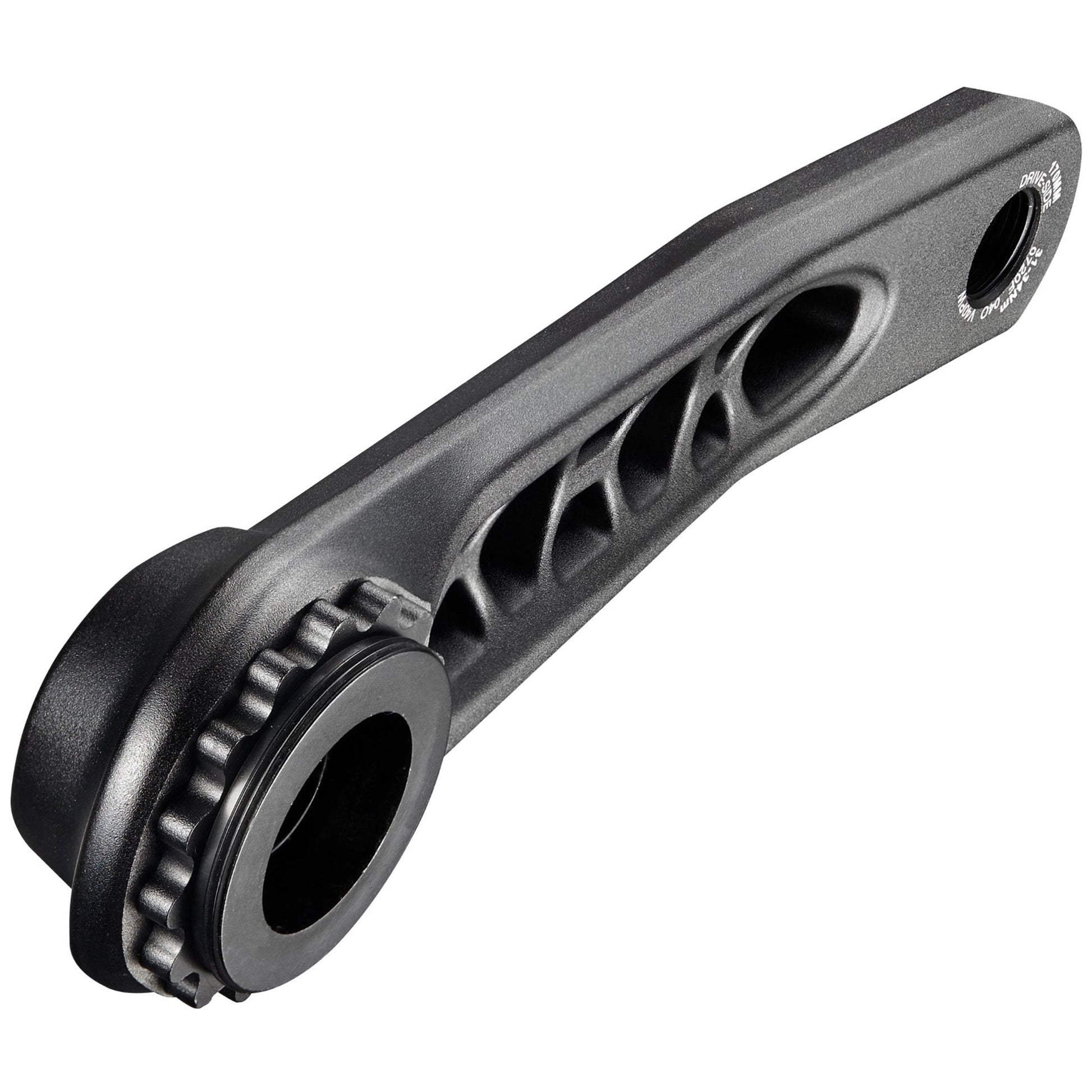

Helix Cranks proven forged AL-6066 alloy for trail weights and Enduro strength and durability. Engineered with weight reduction features into the mold, resulting in a sleek, minimalist aesthetic. CNC cuts further optimize weights for a crank that's equally at home on long singletrack days and for bikepark shuttles. The AL6066-T6 arms are paired with a 24mm heat treated chromoly spindle, resulting in a crankset that hits way over its price point.

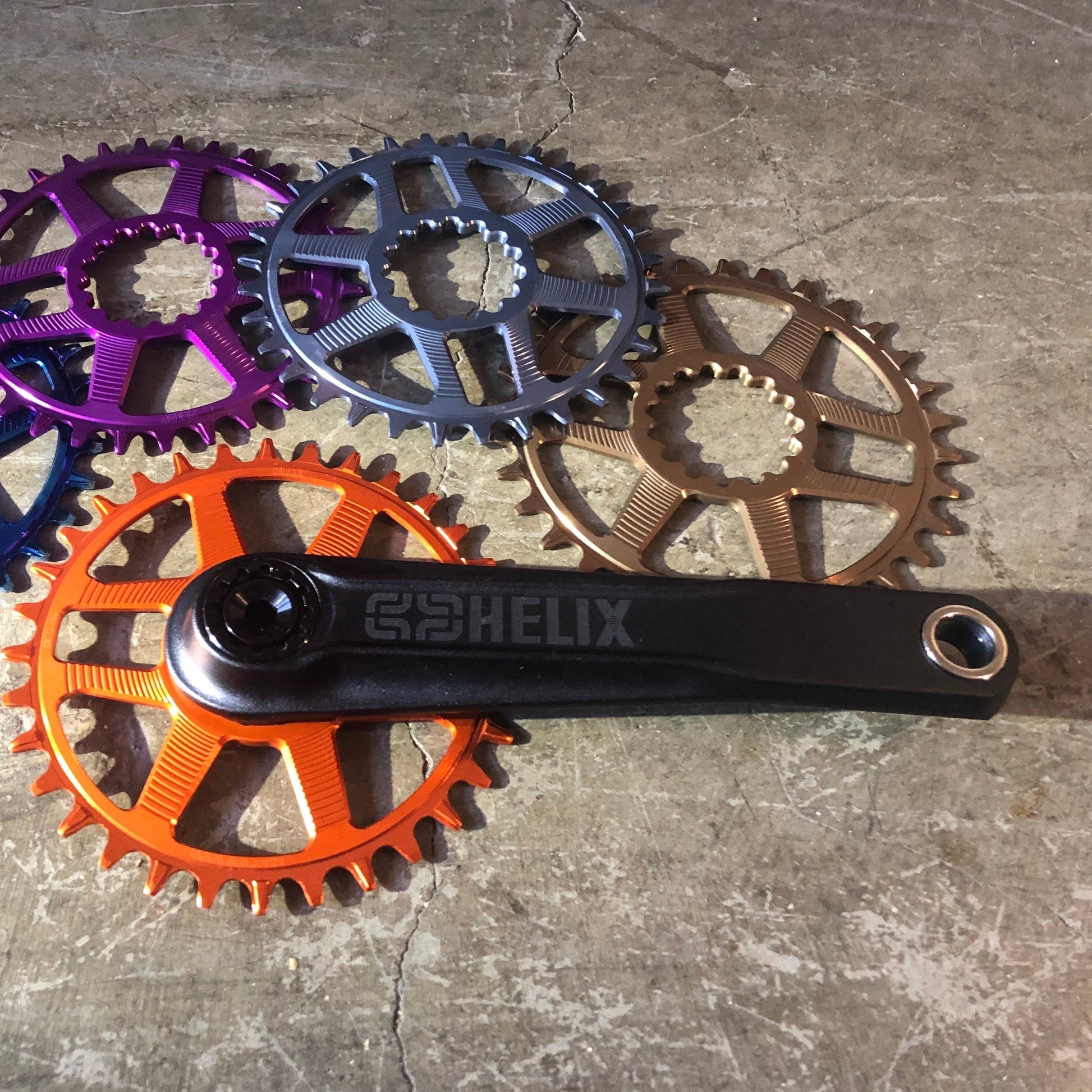

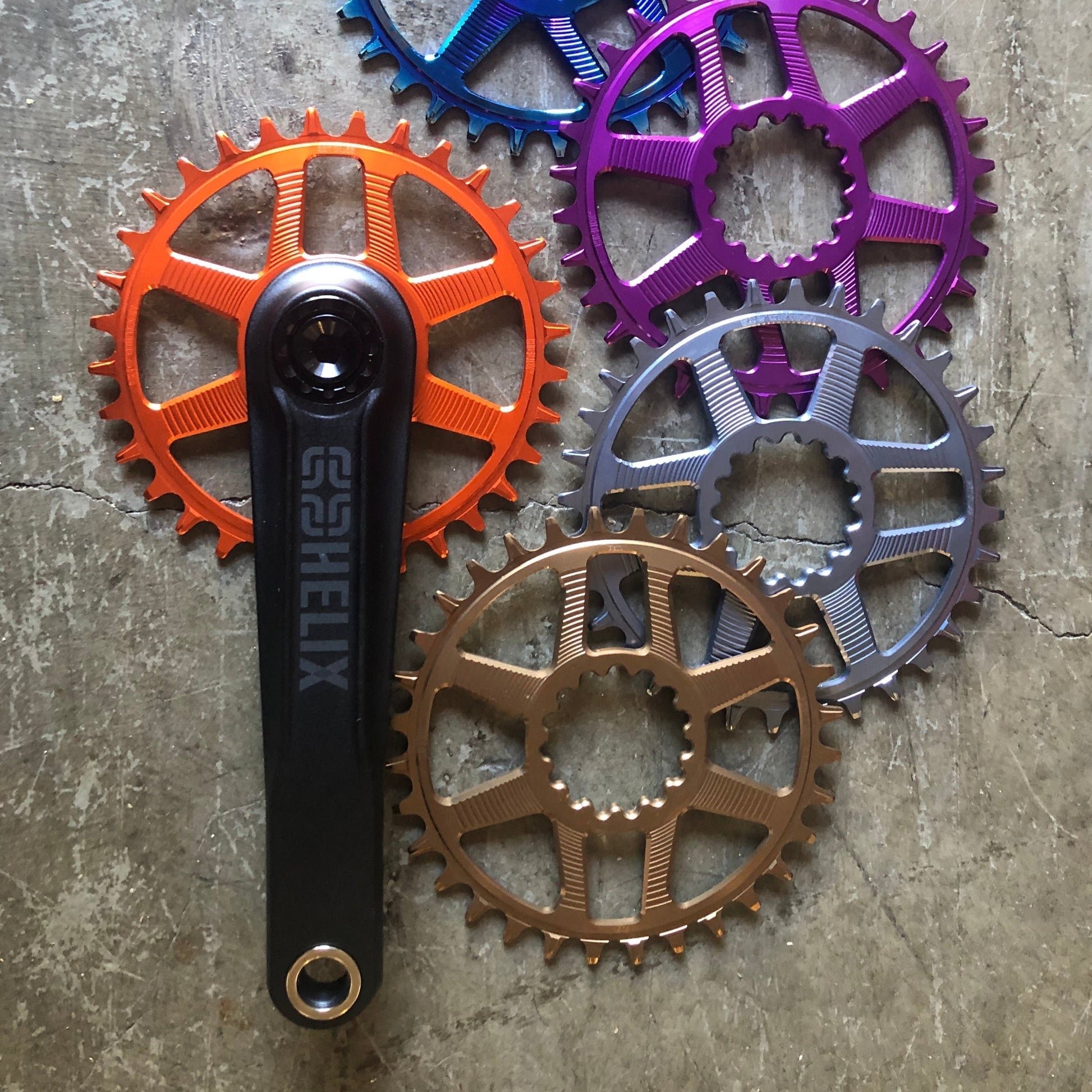

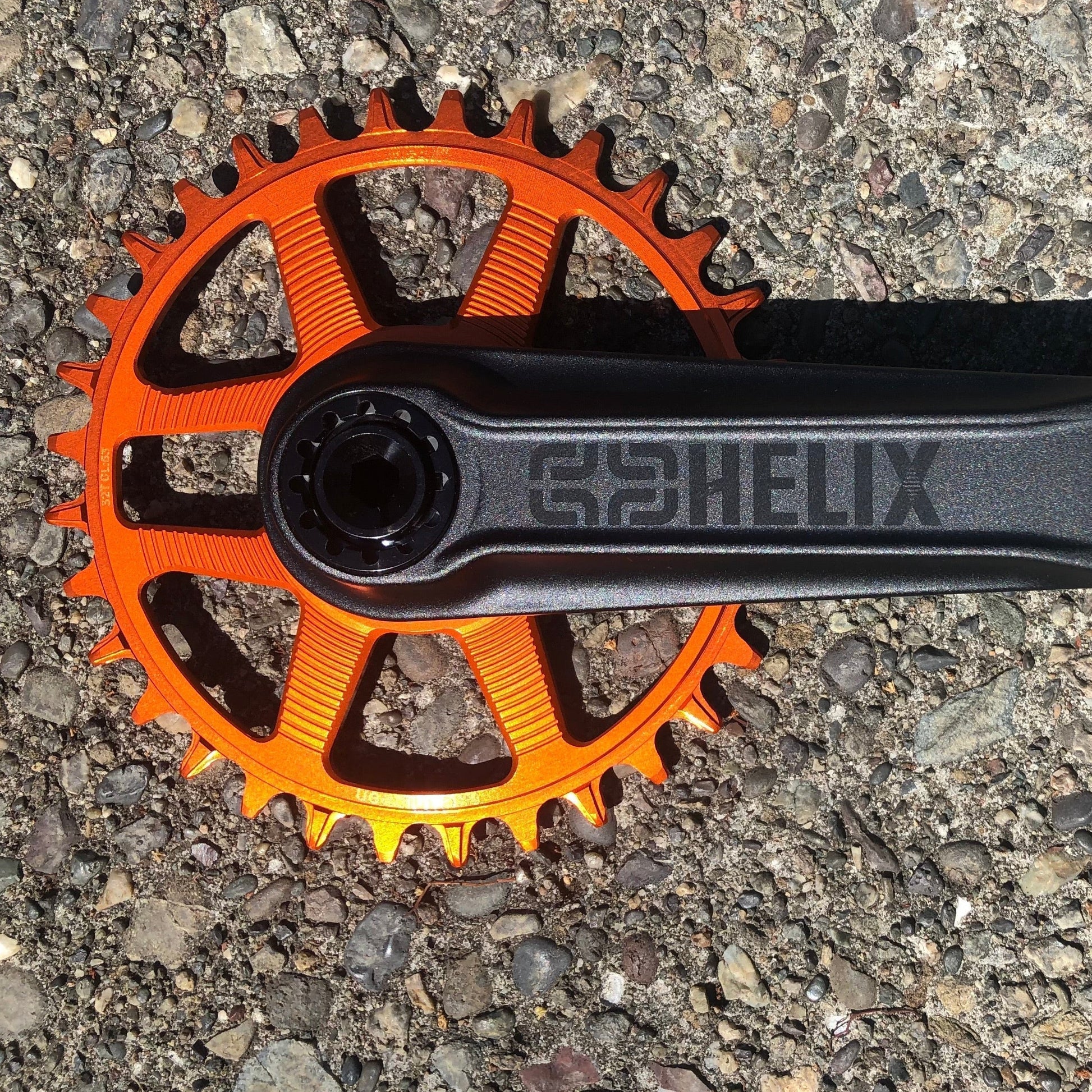

Exemplifying cross compatibility, Helix Cranks fit with flip-flop Helix R or Helix Chainrings in a range of colors from 28 to to 34t and can achieve both Boost and SuperBoost chainlines, and perform equally well with both SRAM™ and Shimano™ 11 and 12-speed drivetrain systems. Equipped with a self-extractor bolt system, and creak-free proven Quick Connect interface, you get all the benefits of higher-end cranks without a heavy price tag.

  • Available in 170mm and 175mm sizes
  • Ultra light, yet rated to enduro loads and impacts at 589 grams in 170mm
  • Designed to reduce weight with features into the mold, resulting in a sleek, minimalist aesthetic
  • CNC cuts further optimize weights for a crank that's dependable on any ride
  • AL6066-T6 arms are paired with a 24mm heat treated chromoly spindle for larger bearings and dependability
  • Unmatched cross compatibility, Helix rings perform equally well with both SRAM™ and Shimano™ 11 and 12-speed drivetrain systems

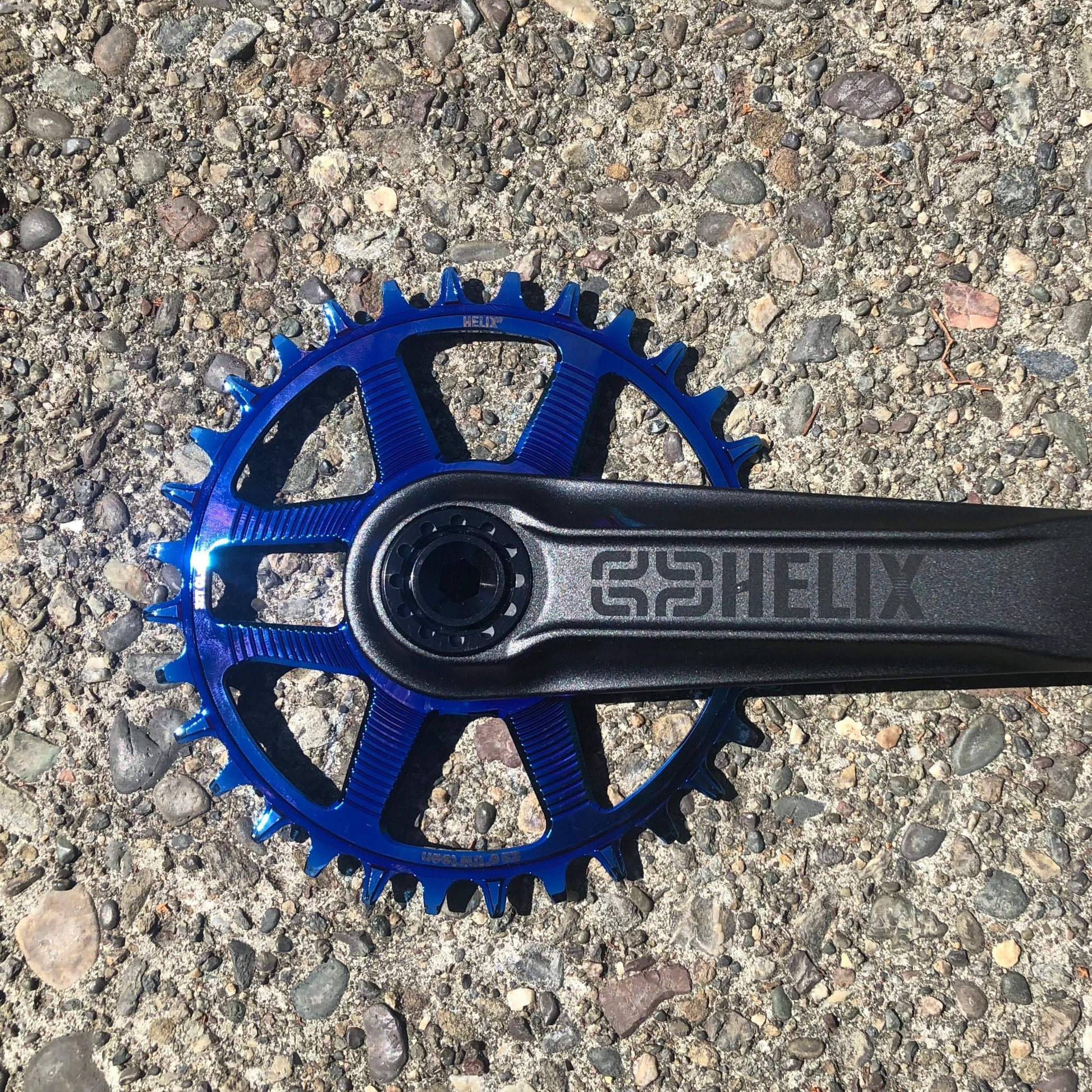

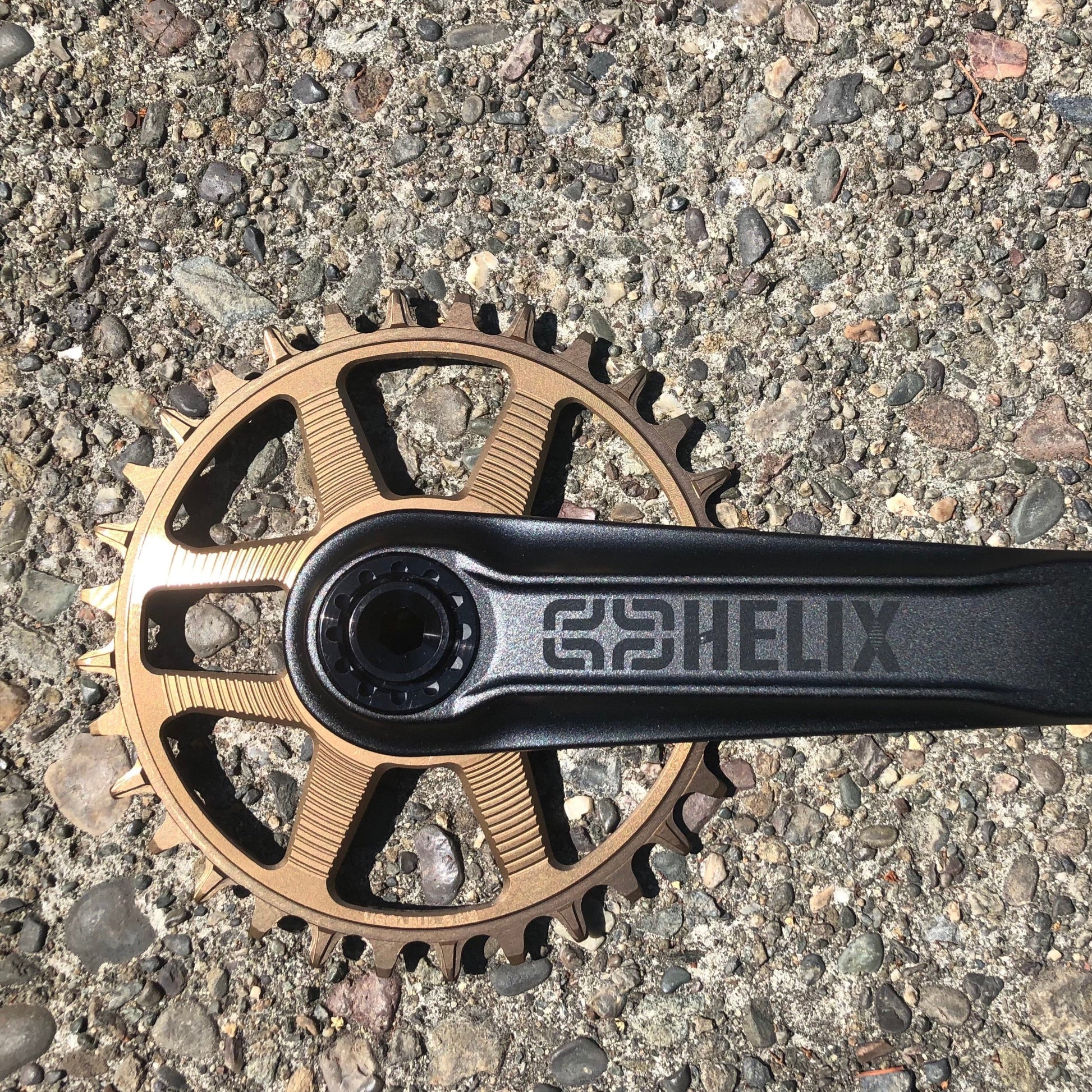

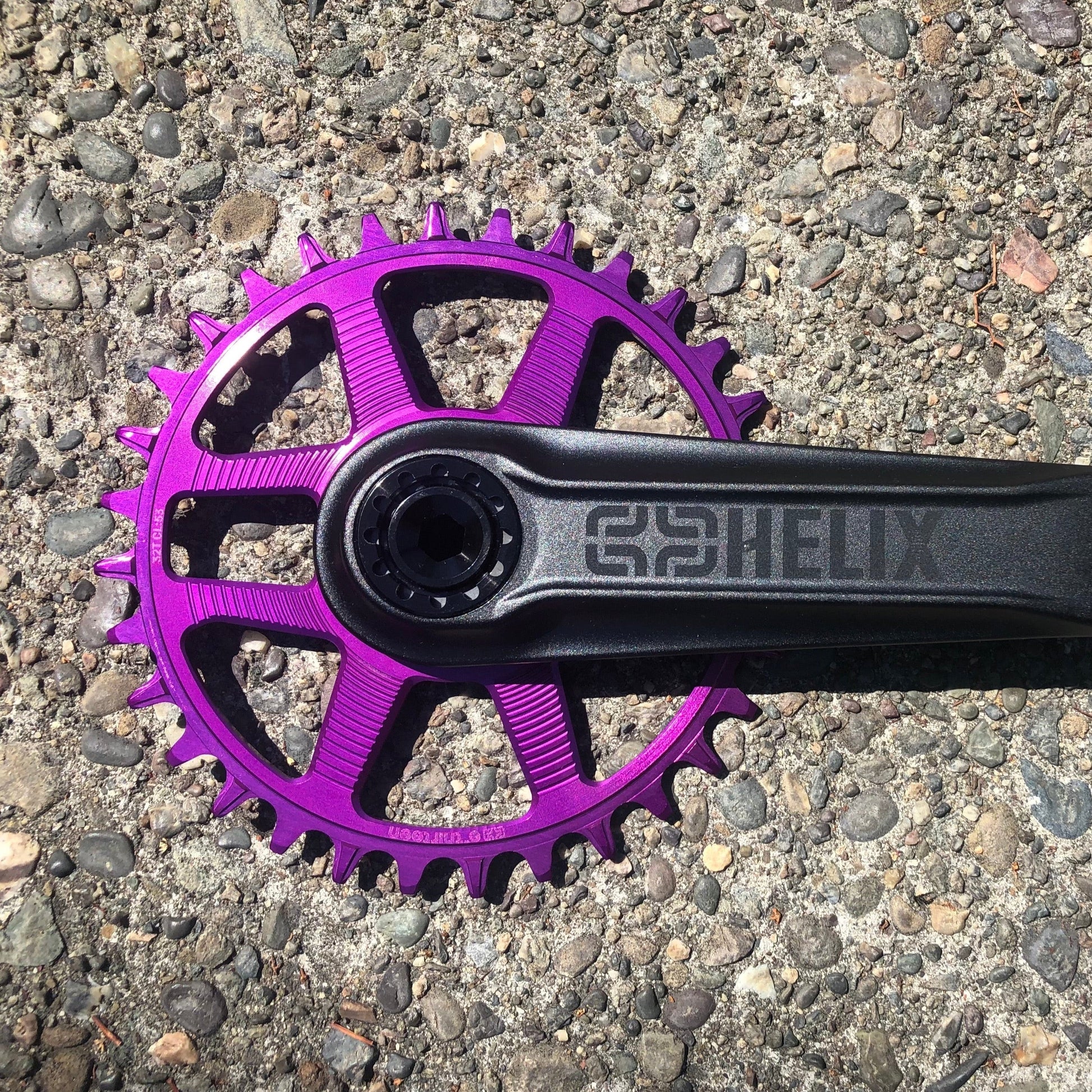

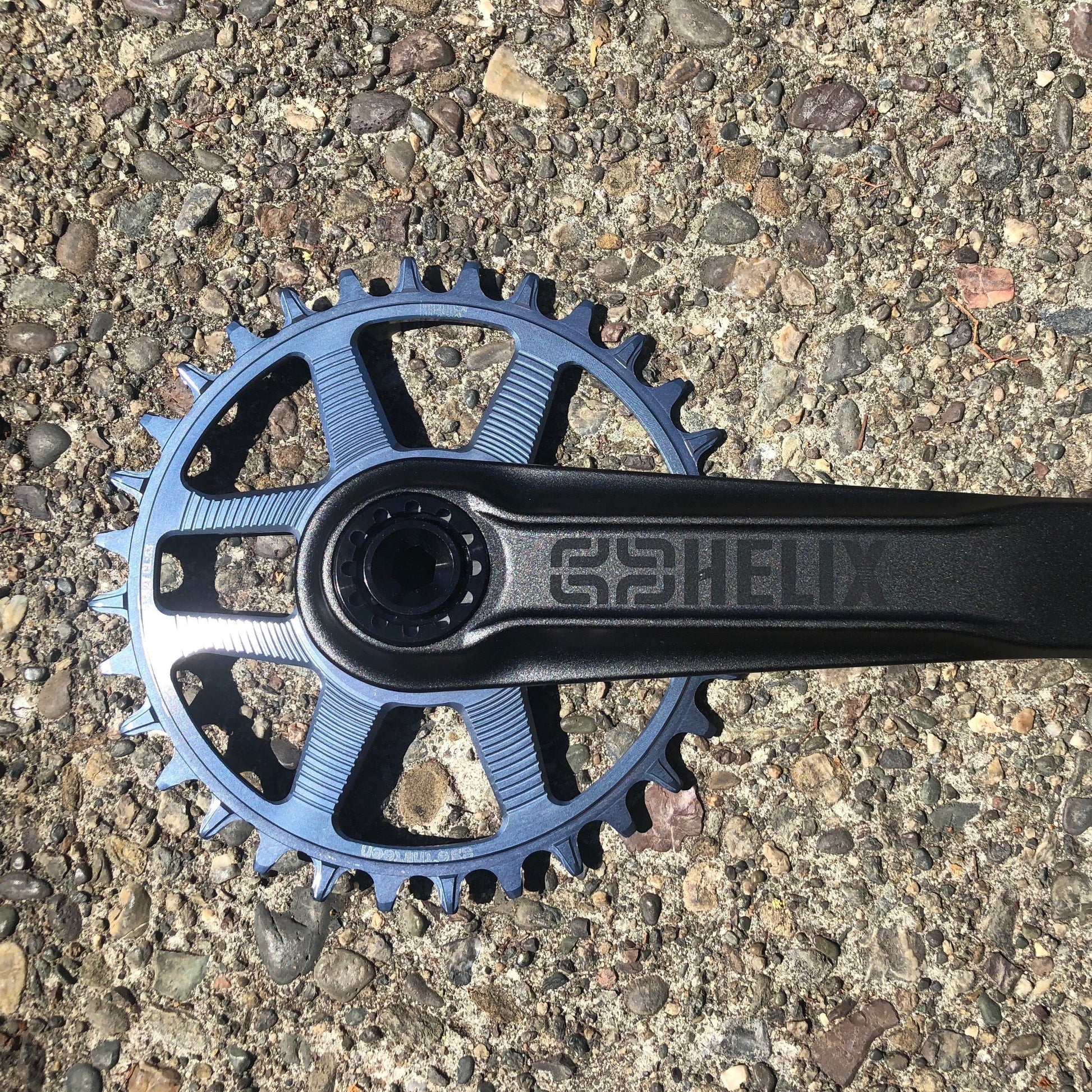

  • Helix Cranks fit with flip-flop Helix R or Helix Chainrings in a range of colors from 28 to to 34t to achieve both Boost and SuperBoost chainlines
Chainrings are sold separately.

Chainline
Chainline spacers achieve non-Boost, Boost, or SuperBoost. 52/55mm
Chainring

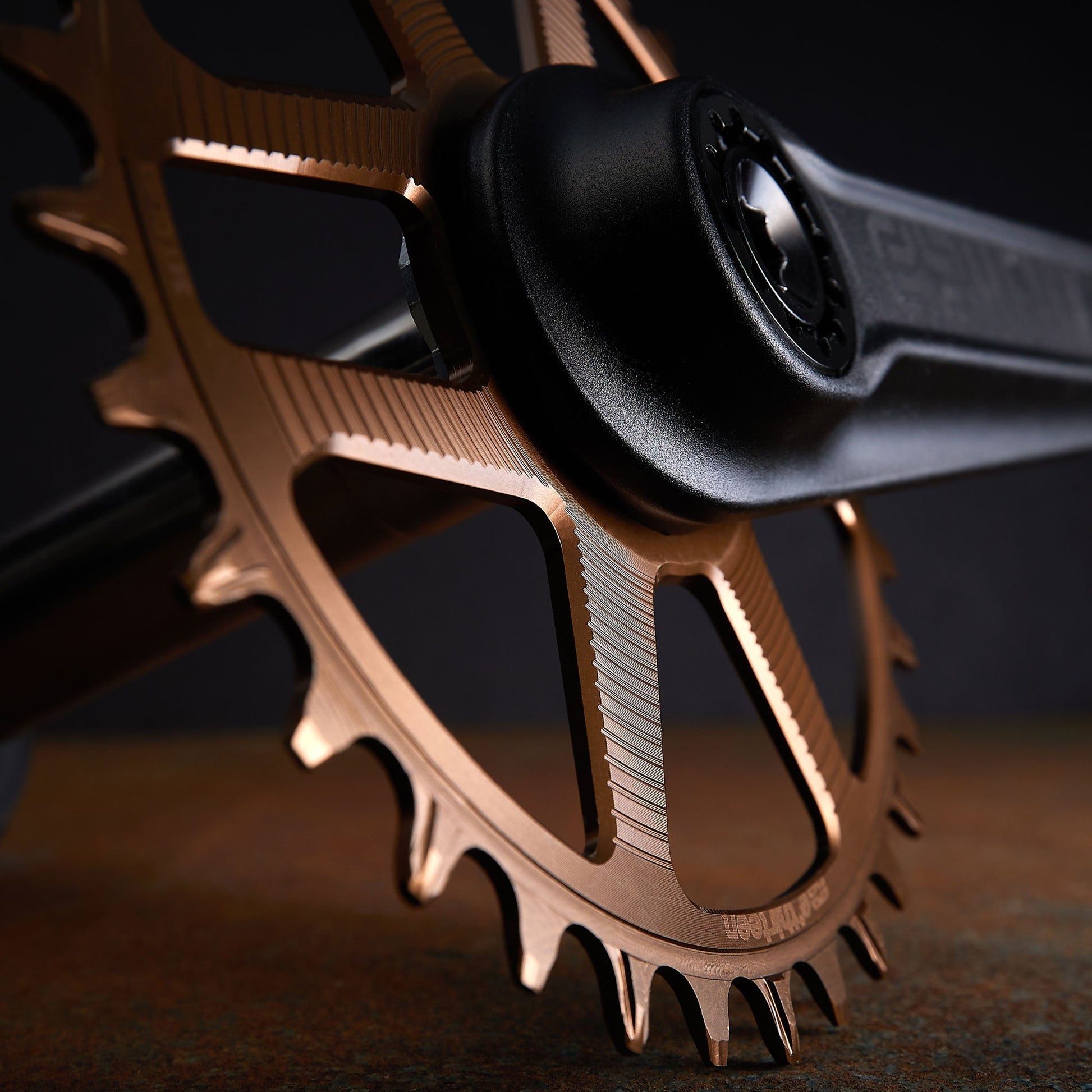

Helix R Direct Mount Chainring, Helix Plus Direct Mount Chainring, Helix Base Direct Mount Steel Chainring
Color
Black
Compatibility
All frames with a 68/73mm BB shell
Features
Spindle on NDS for easy drivetrain maintenance, adjustable chainline, and 8mm self-extractor
Included
Crankset, BB/lockring tool, lockring, APS adjuster, User Manual, and sticker
Length
170mm, 175mm
Material
6066 Aluminum
Self Extractor
Yes
Spindle
Width: 68/73mm

Diameter: 24mm

Interface: P3 Connect
Weight
170 x 73mm: 588g
175 x 73mm: 608g

Collapsible content

Helix Core Alloy Crank

Guaranteed to be free from defects in materials or workmanship for 5 years after original purchase
