Race Alloy Straight Pull Hubs
Race Alloy Straight Pull Hubs
Starting at
Sale
Sold out
Regular price
£154.95 GBP
Sale price
£154.95 GBP
Regular price
£154.95 GBP
Unit price
per
Tax incl.
Shipping policy Free Domestic Shipping at $100.00
SKU:HB5URA-102
Couldn't load pickup availability
Race Alloy Straight Pull Hubs were engineered to deliver the strength and reliability required by today's gravel enthusiasts. They share the exceptionally wide flange spacing of our MTB hubs, providing a wider spoke stance and optimized lateral stiffness. Flange angles and chamfered spoke holes are carefully calculated to reduce stress on lightweight spokes. Hub shells have a minimal diameter profile, which is extensively CNC optimized to minimize weight, without compromising strength and reliability. The entire system is sealed to ensure reliability in the harshest conditions.
- 24H spoke hole configuration front and rear

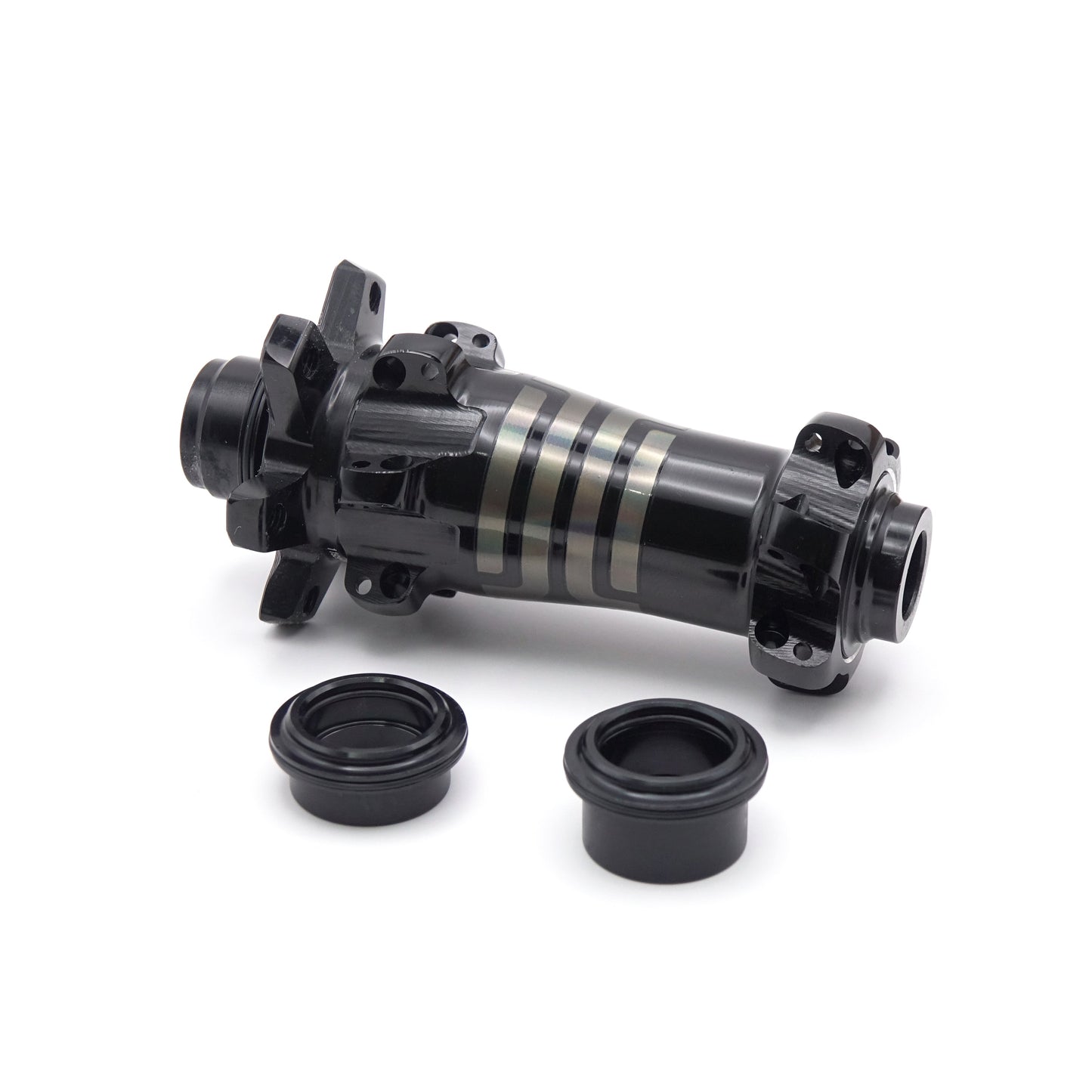

- 100mm Front hubs come with 12mm and 15mm thru axle end-caps

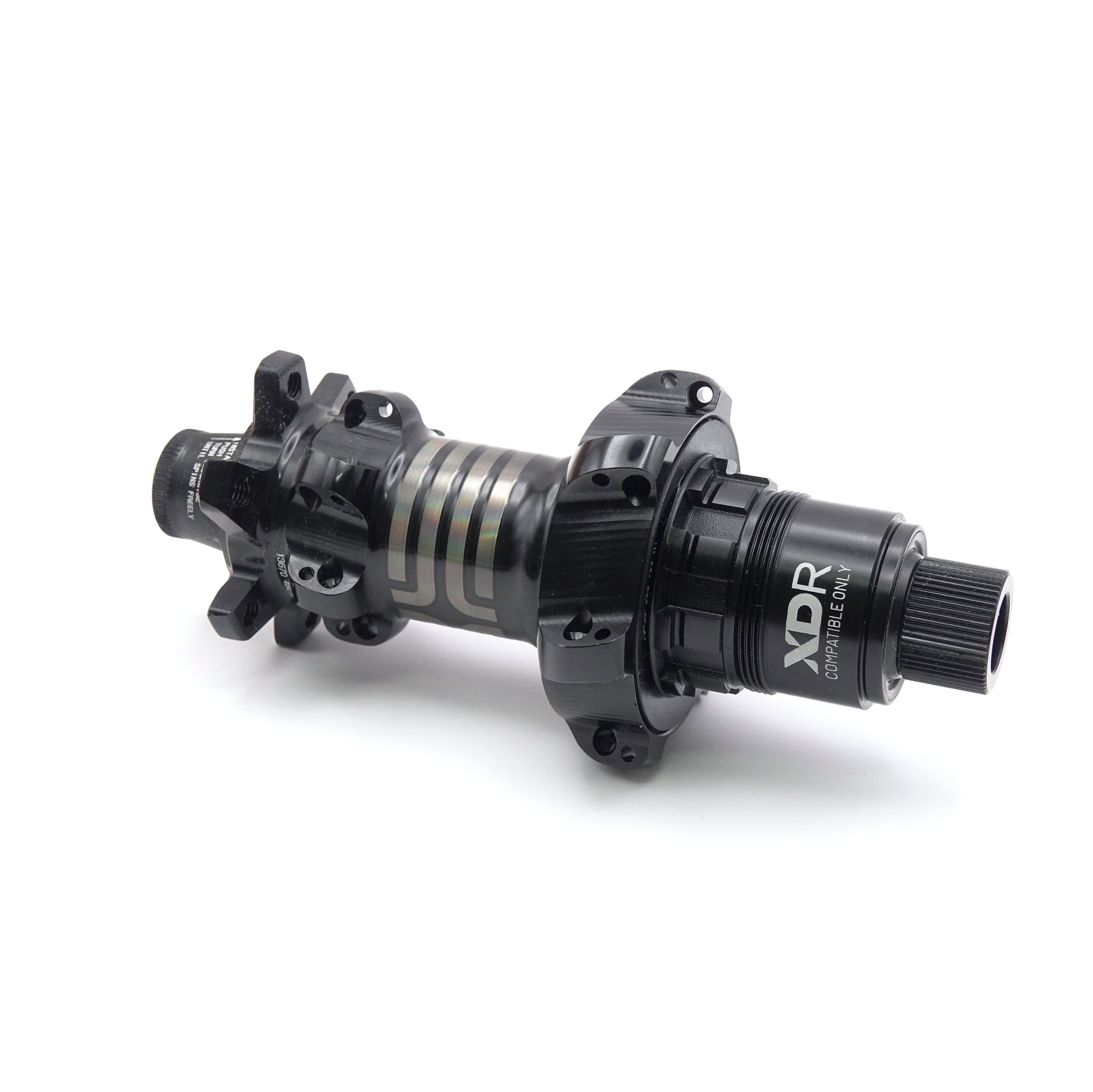

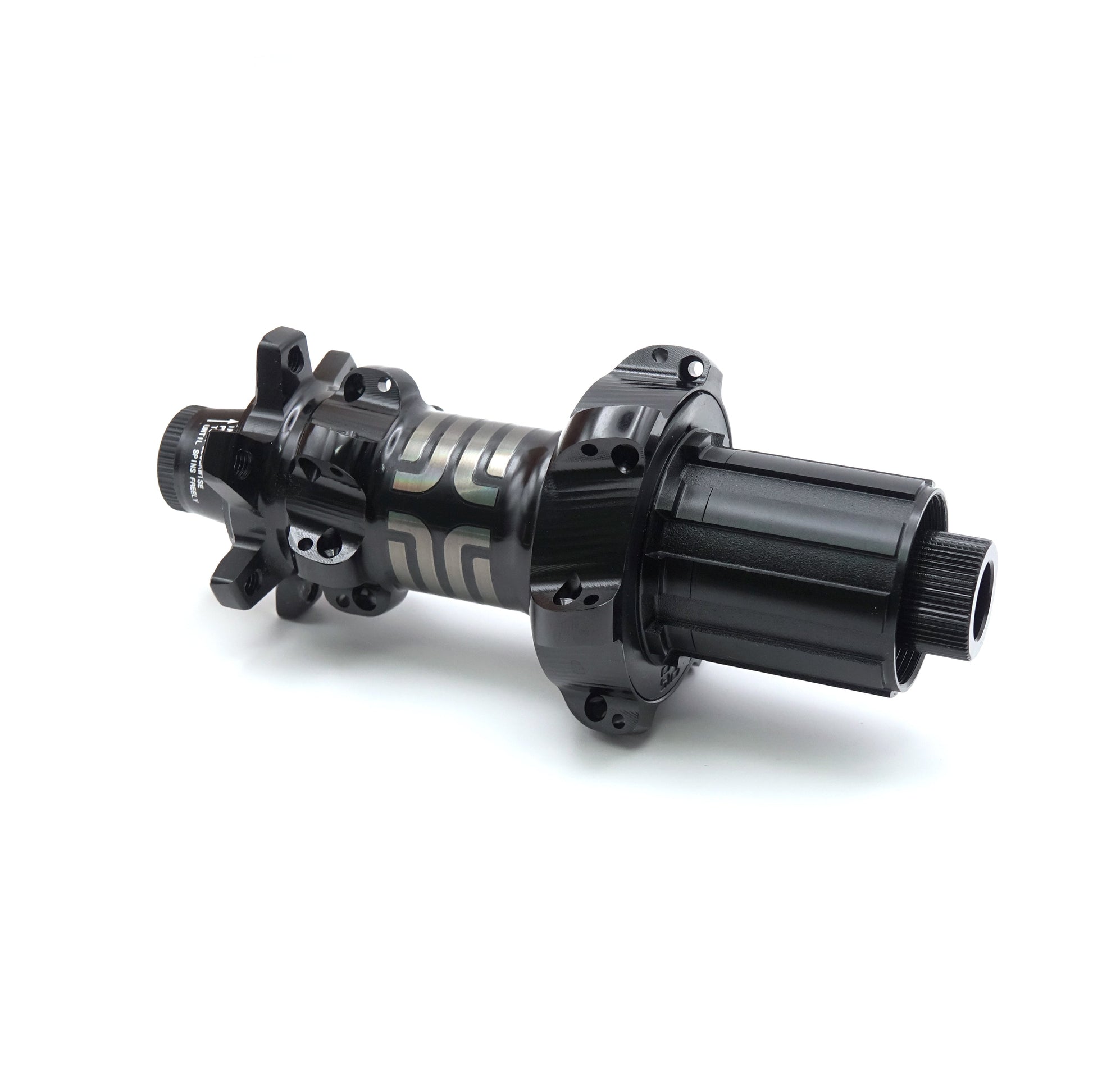

- 142x12mm Rear hubs are available with HG or XDR freehub options
Axle
Front: 110x12/15mm
Rear: 142x12mm
Rear: 142x12mm
Drilling
24h front and rear
Engagement
4-pawl, 3°
Freehub Mount
XDR and HG freehubs available
Hub
Build Specs
Front Hub: FL ⌀37mm / FR ⌀37mm, C-FL 23mm / C-FR 29.5mm, Spoke Hole Offset 2.5mm
Rear Hub: FL ⌀36mm / FR ⌀47mm, C-FL 30.5mm / C-FR 18mm, Spoke Hole Offset 2.5mm
Front Hub: FL ⌀37mm / FR ⌀37mm, C-FL 23mm / C-FR 29.5mm, Spoke Hole Offset 2.5mm
Rear Hub: FL ⌀36mm / FR ⌀47mm, C-FL 30.5mm / C-FR 18mm, Spoke Hole Offset 2.5mm
Weight
Front: 94g
Rear: XDR 282g, HG 290g
Rear: XDR 282g, HG 290g
Guaranteed to be free from defects in materials or workmanship for 5 years after original purchase
