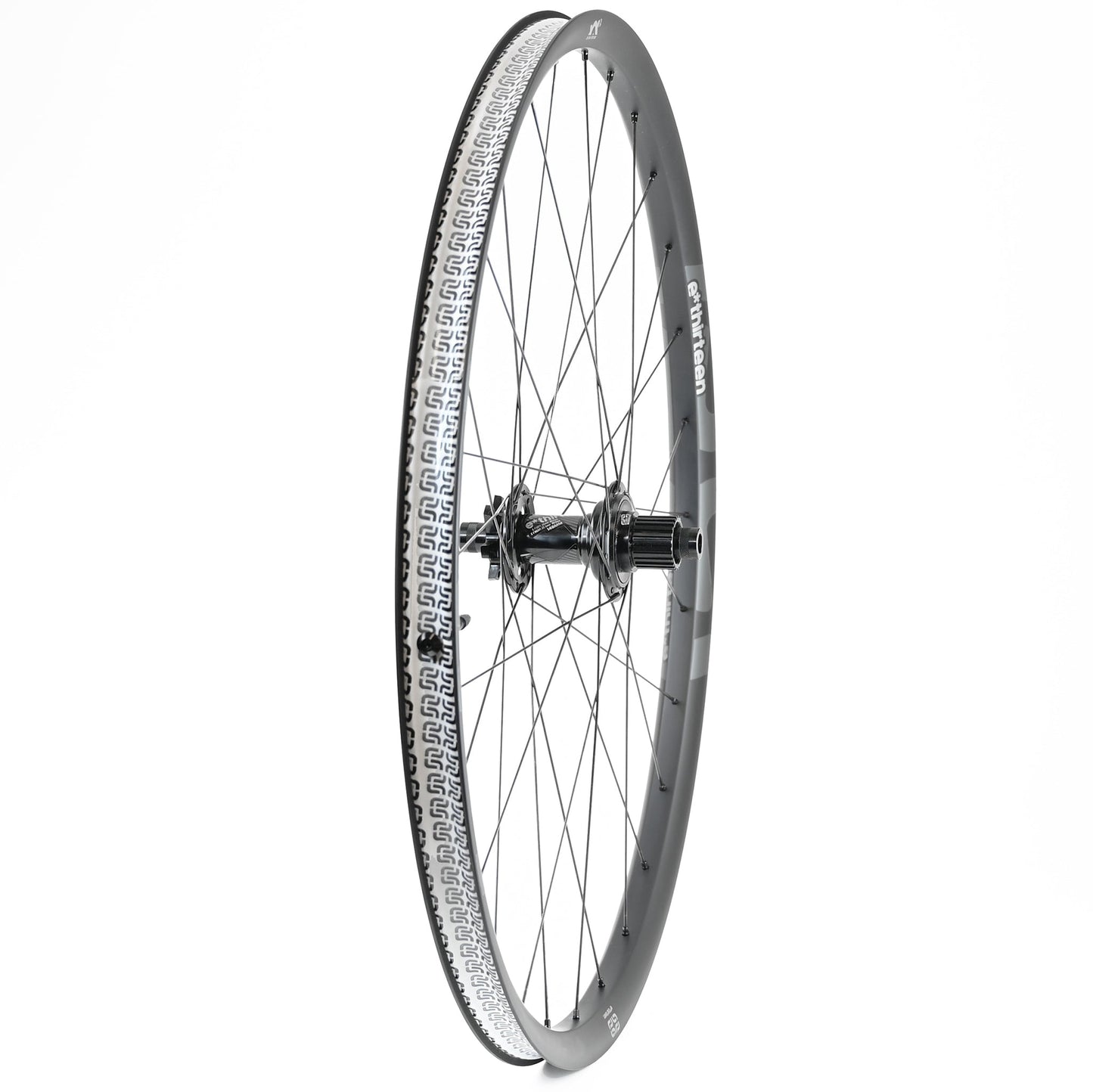

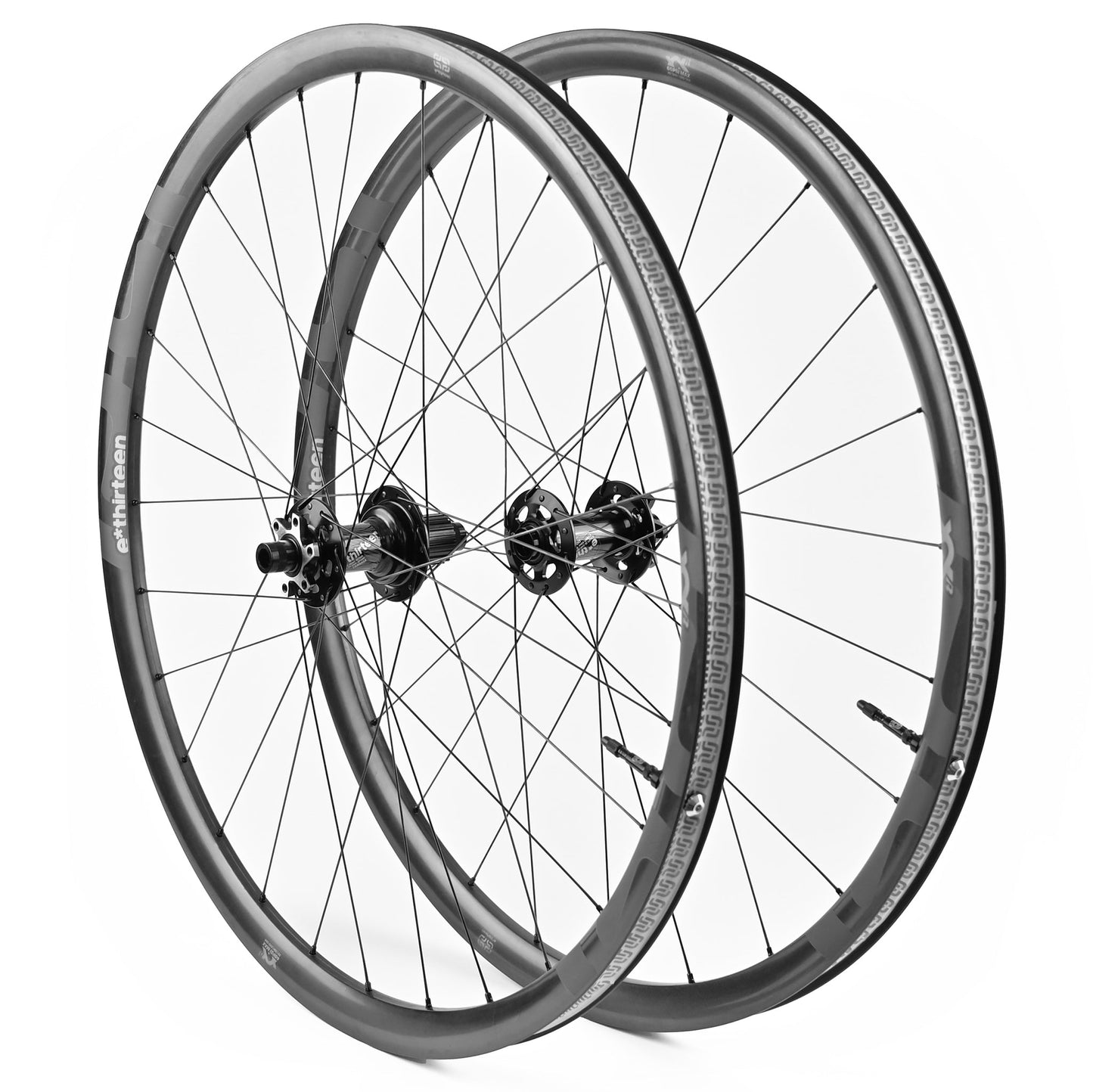

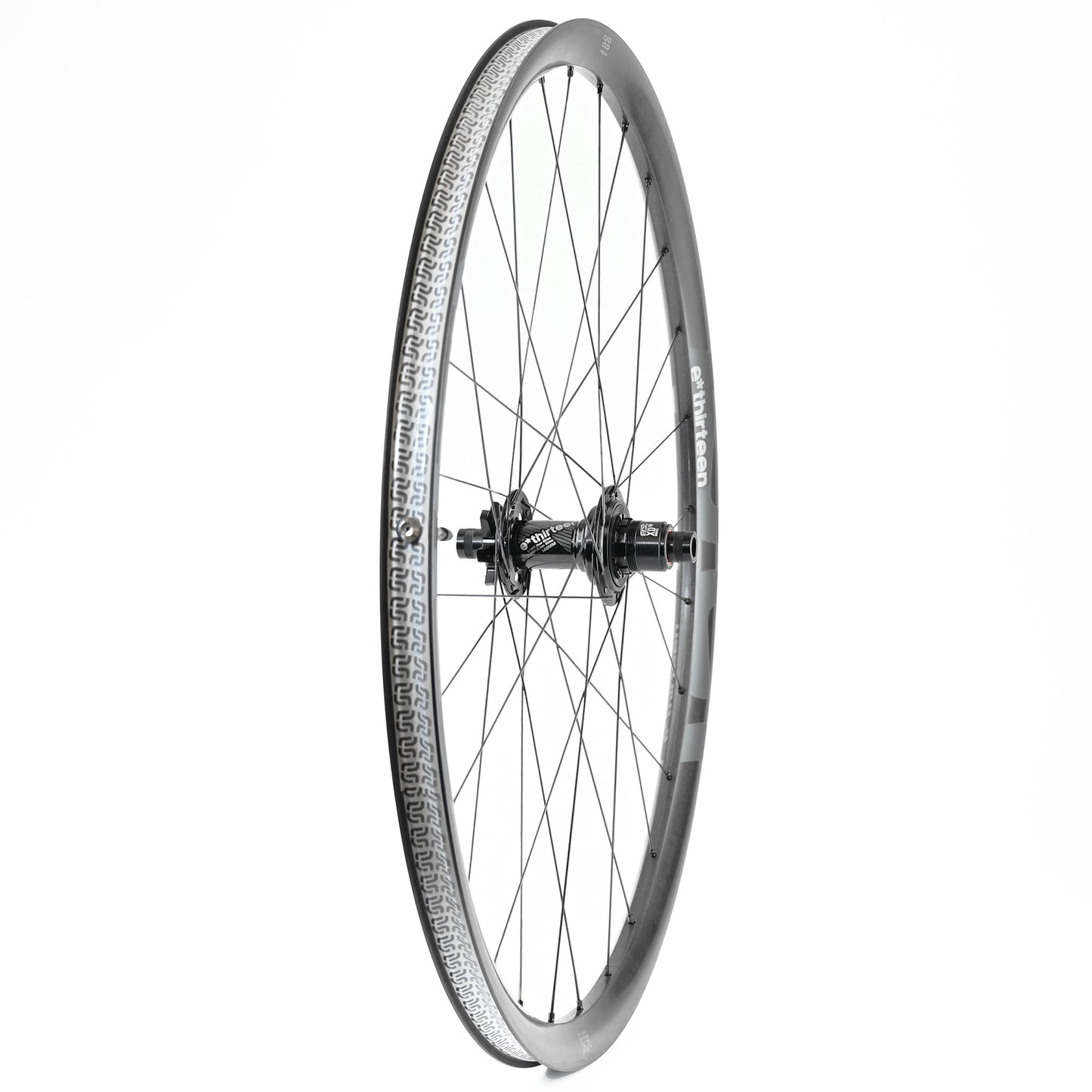

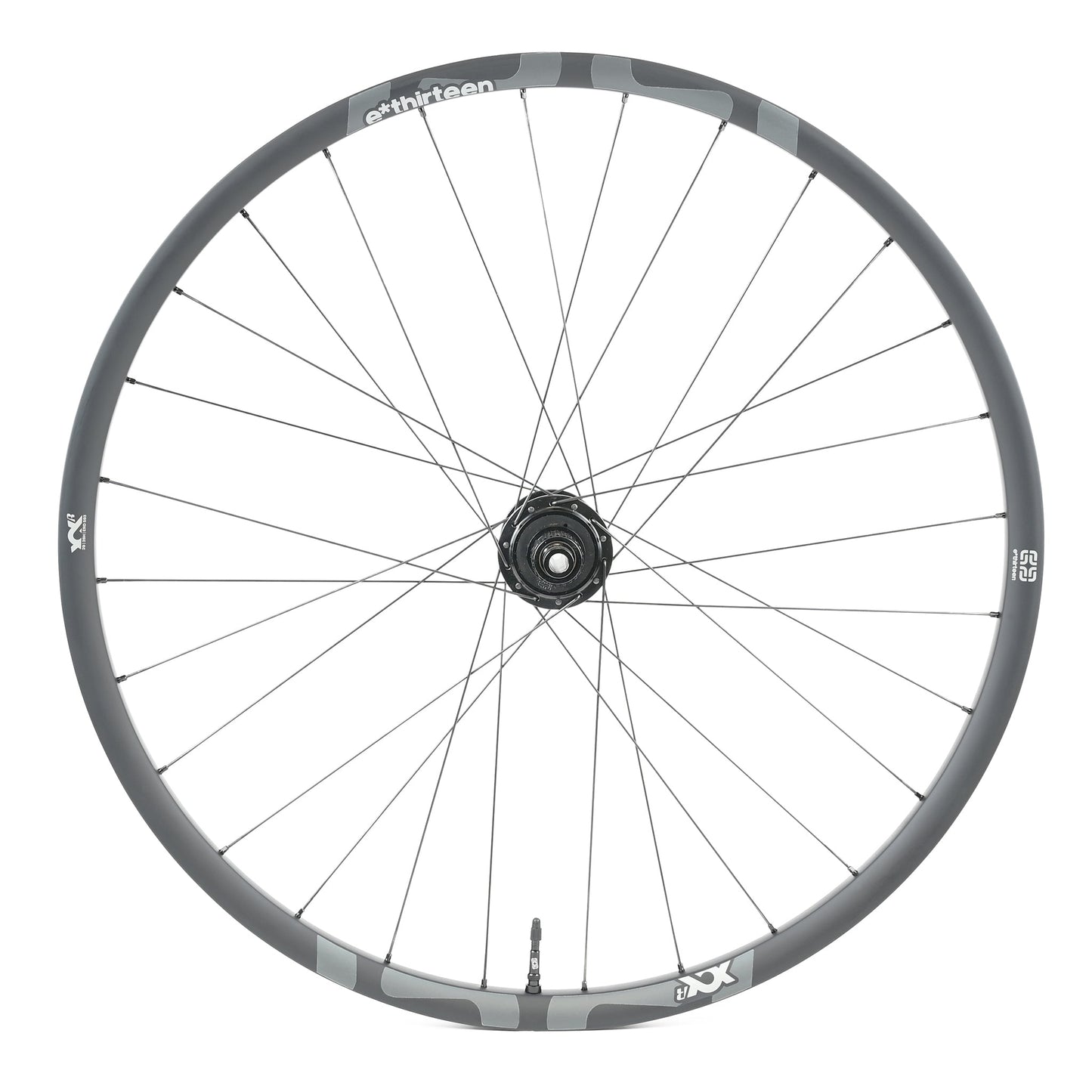

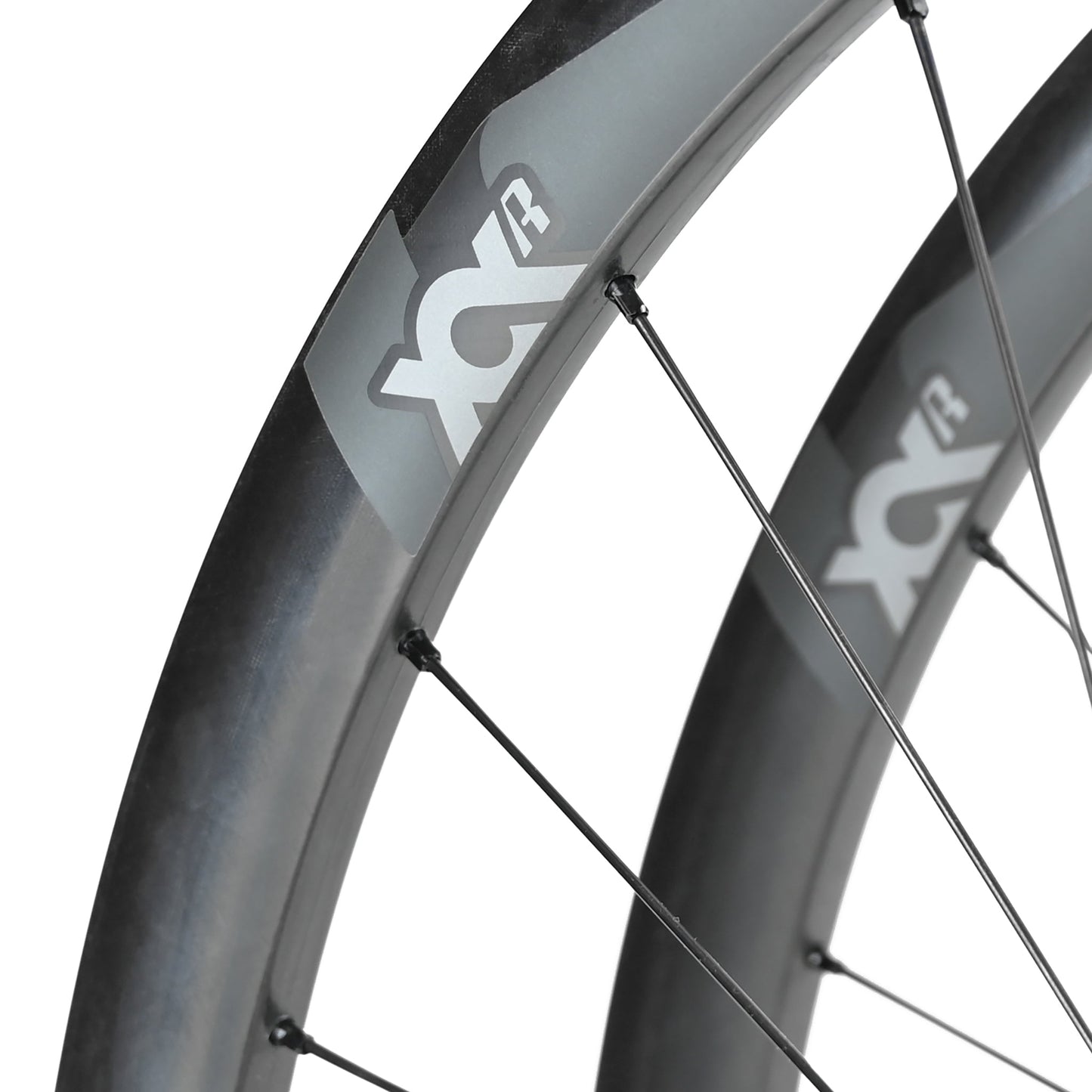

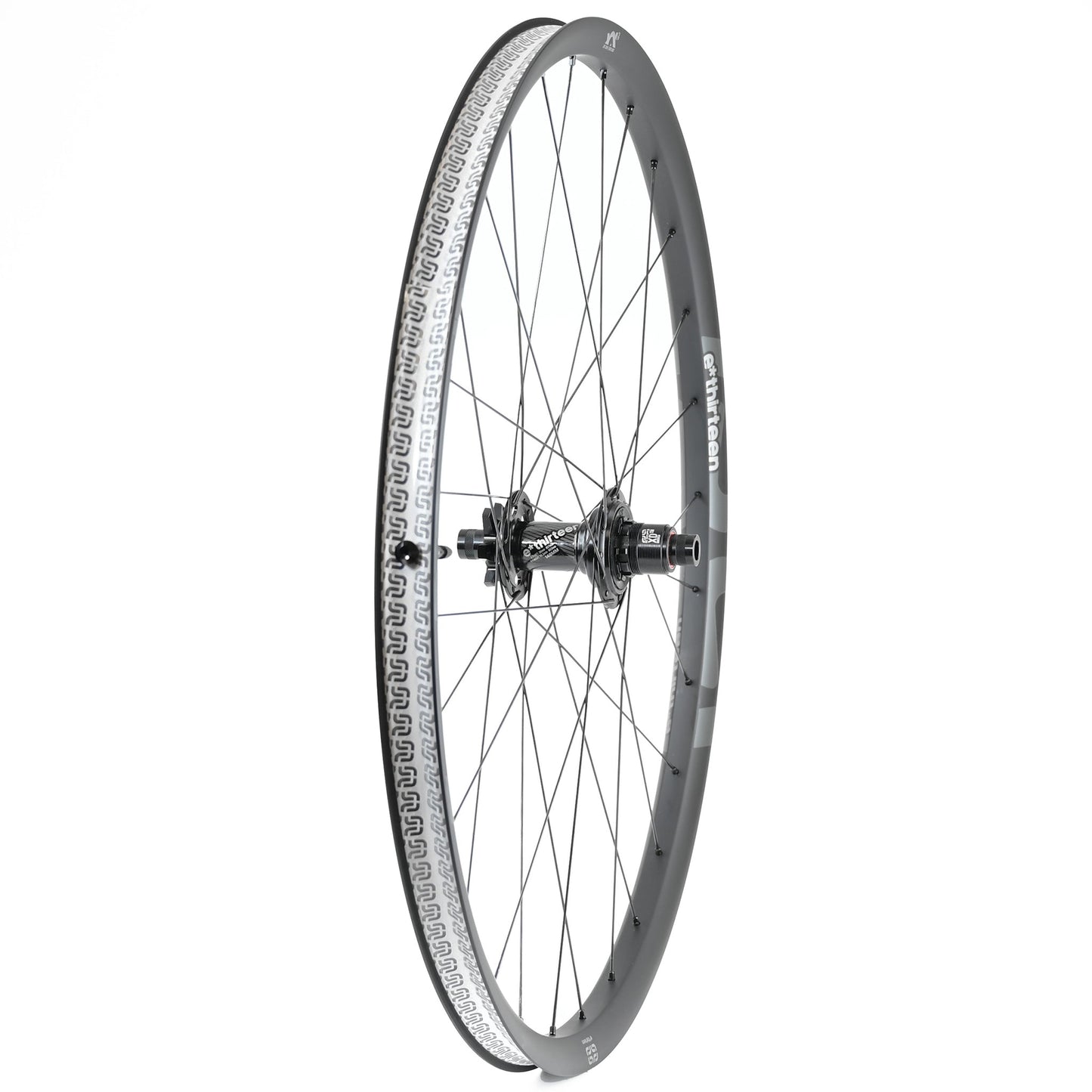

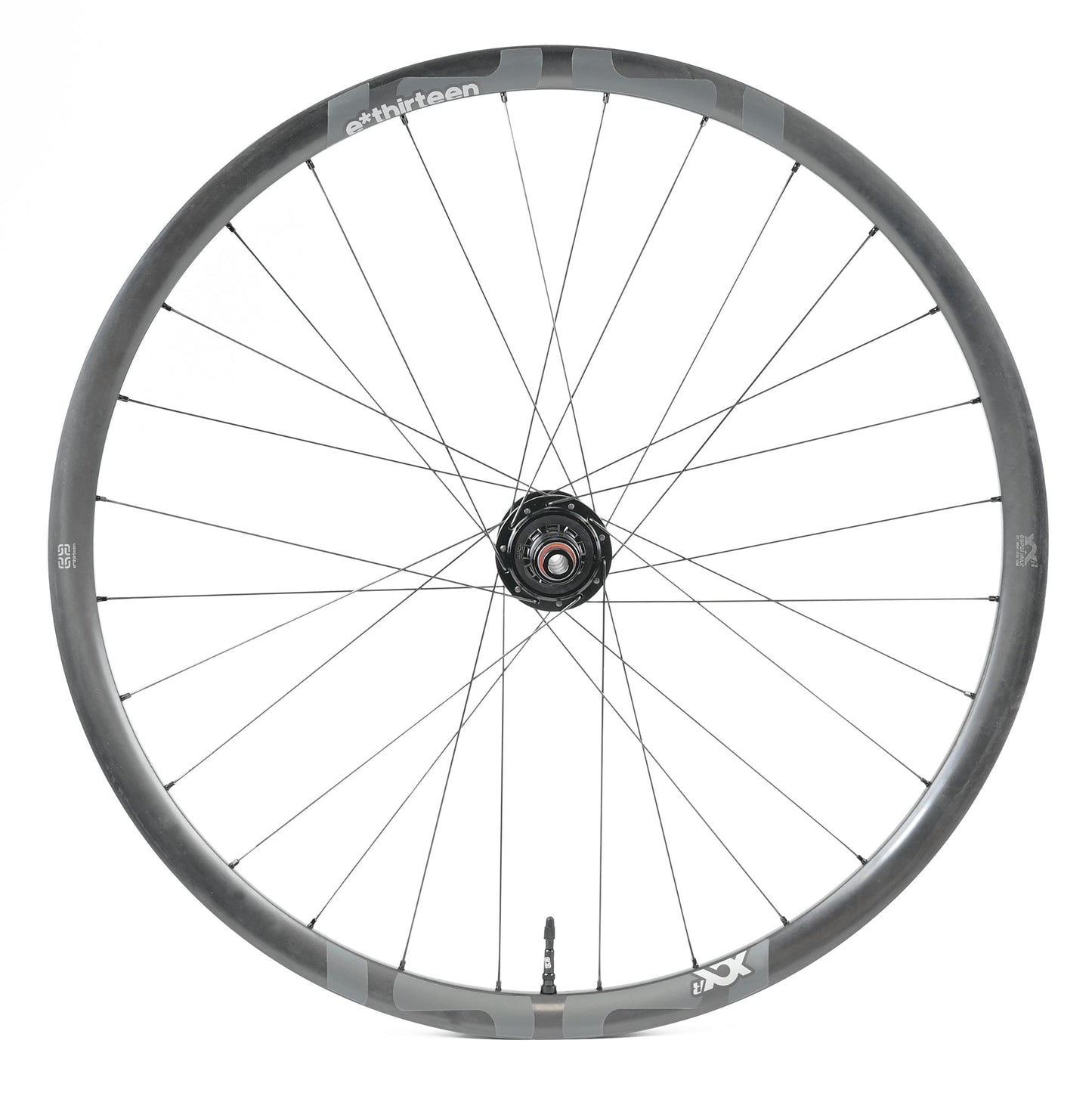

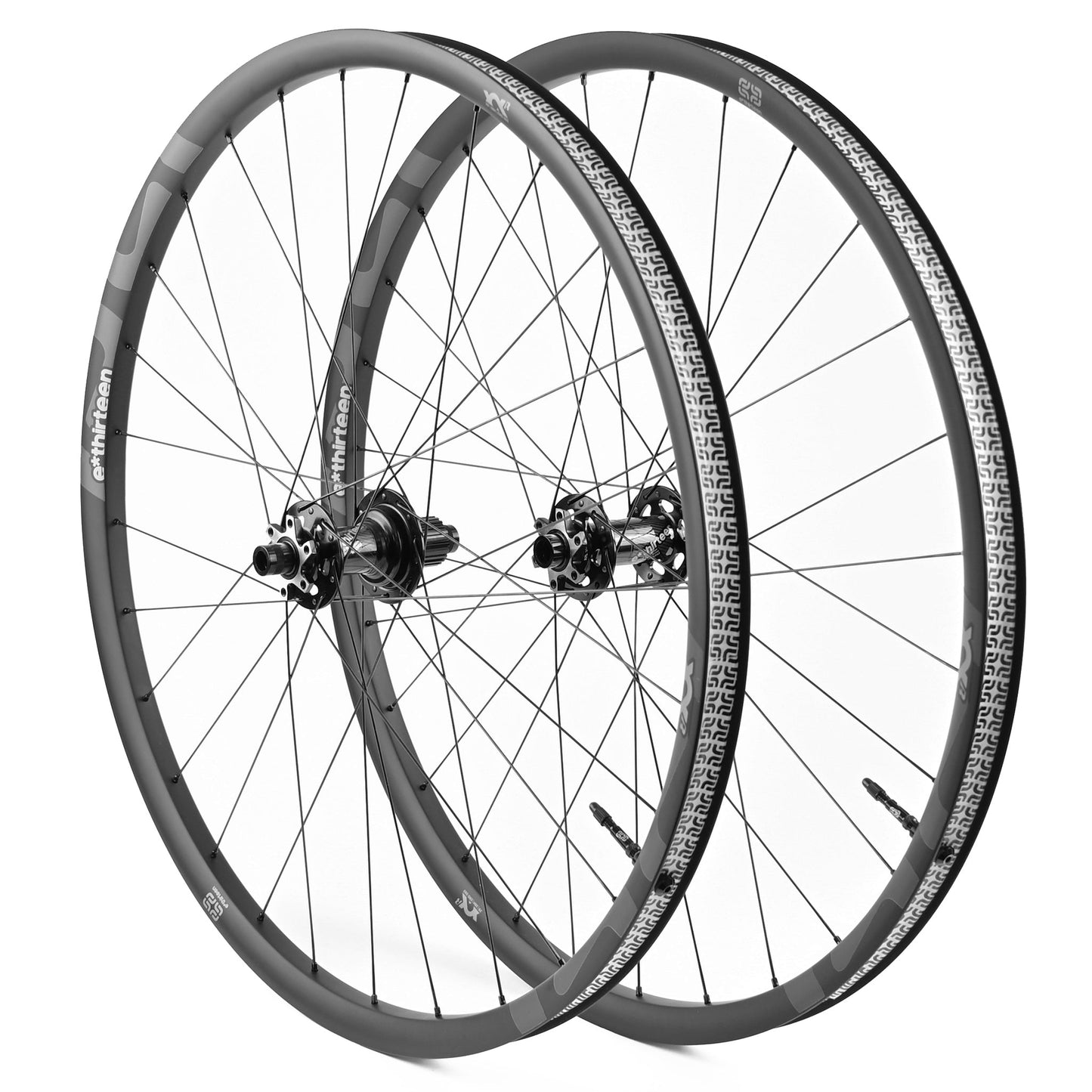

XCX Race Carbon MTB Wheels

XCX Race Carbon MTB Wheels

Starting at
Regular price £503.30 GBP
Sale price £503.30 GBP Regular price £503.30 GBP
Sale Sold out
Tax incl. Shipping policy Free Domestic Shipping at $100.00

SKU:WH4XRA-103

Size
Front or Rear (Sold Separately!)
View full details

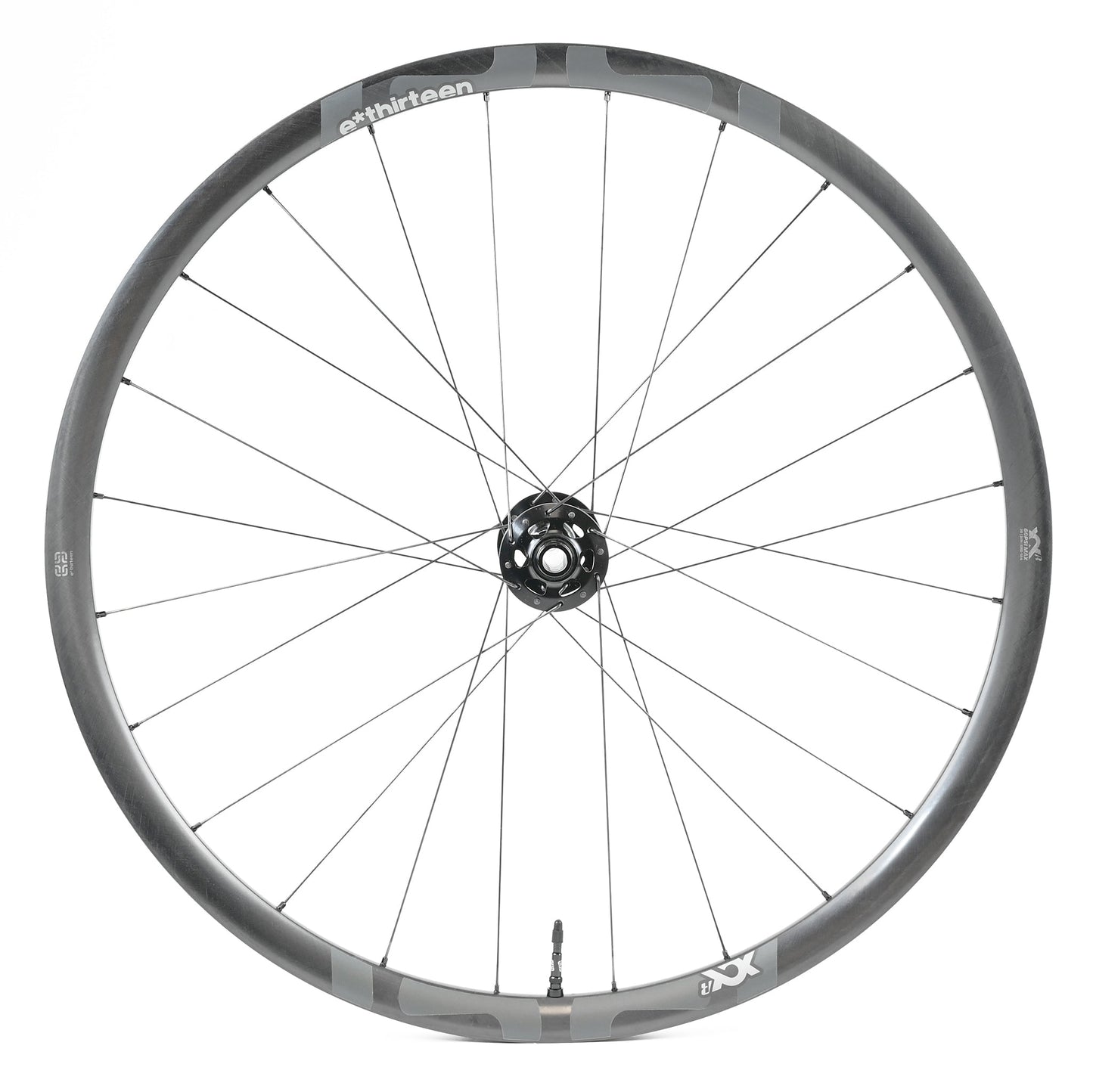

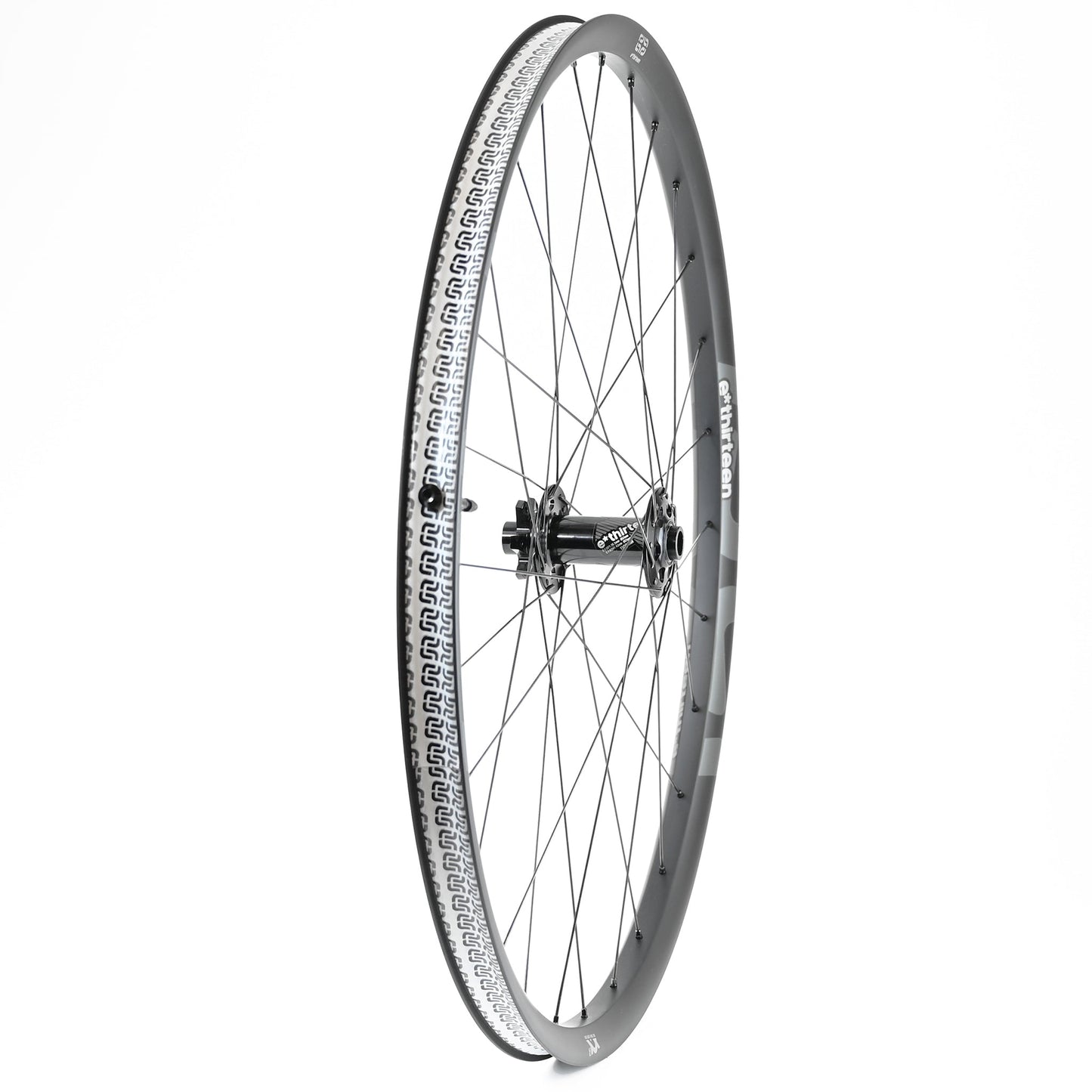

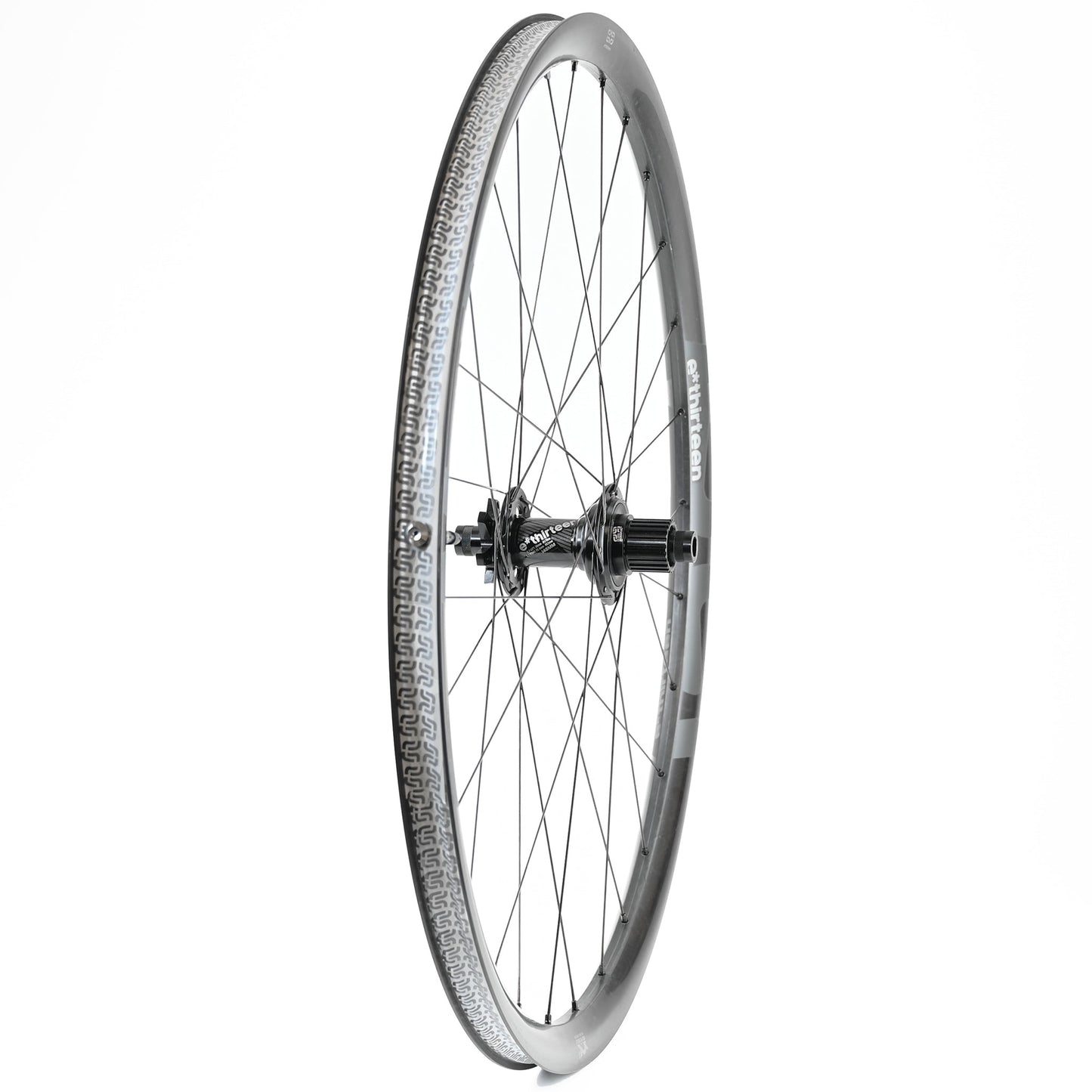

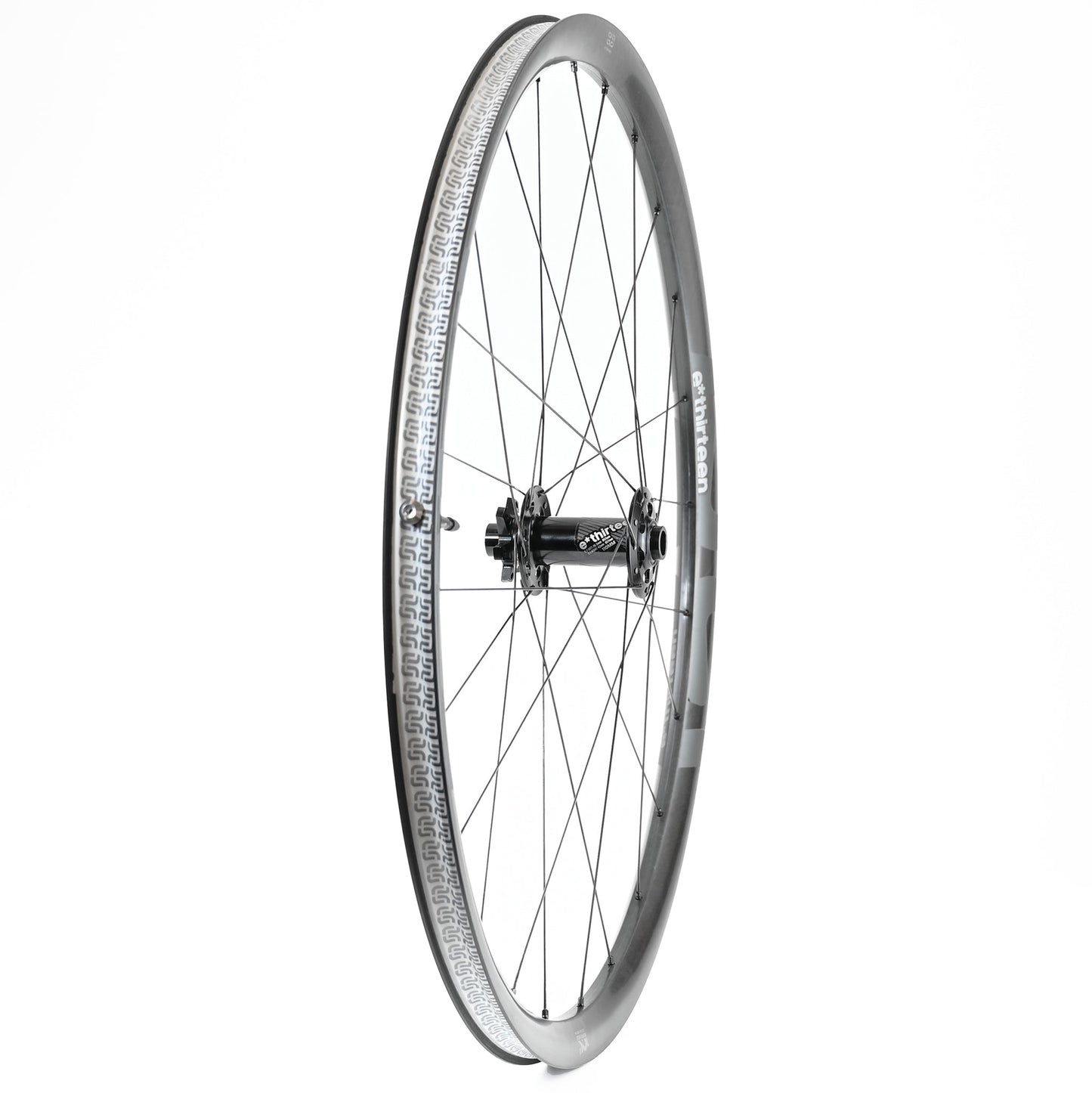

The all-new XCX race wheels complete our trifecta of podium-worthy gravel, trail, and cross-country components.

Designed for iconic races like the Cape Epic and the BC Bike Race, we offer the XCX race wheels in two versions. The XCX (IW24) internal width 24mm wheelset is a cross-country rider's dream at a mere 1,350g, and the (IW28) internal width 28mm wheelset comes in at only 1,520g, and better suits trail riders using slightly larger tires.

Wheels Sold Separately - Please add Front and Rear to build a set!

Color

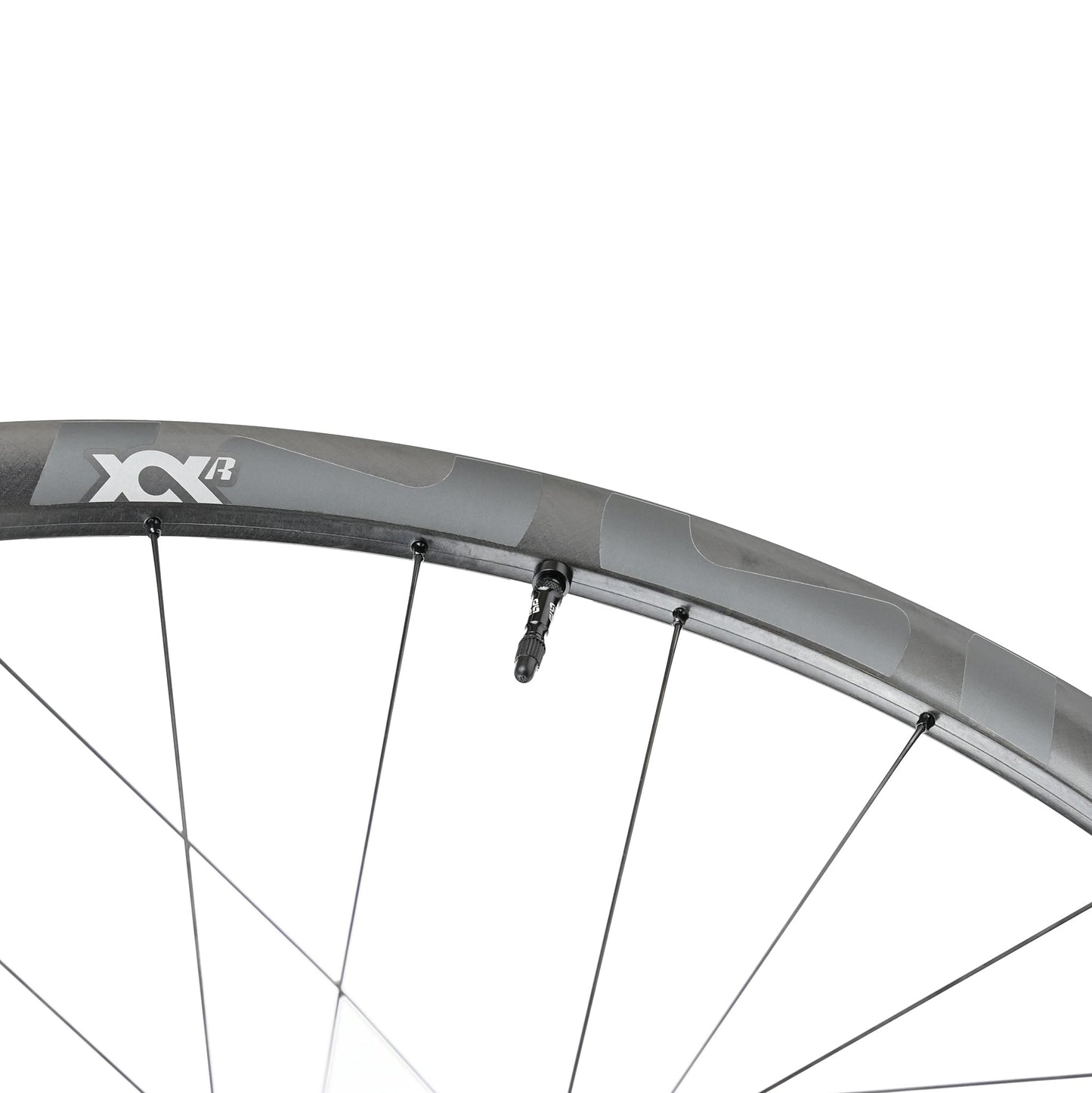

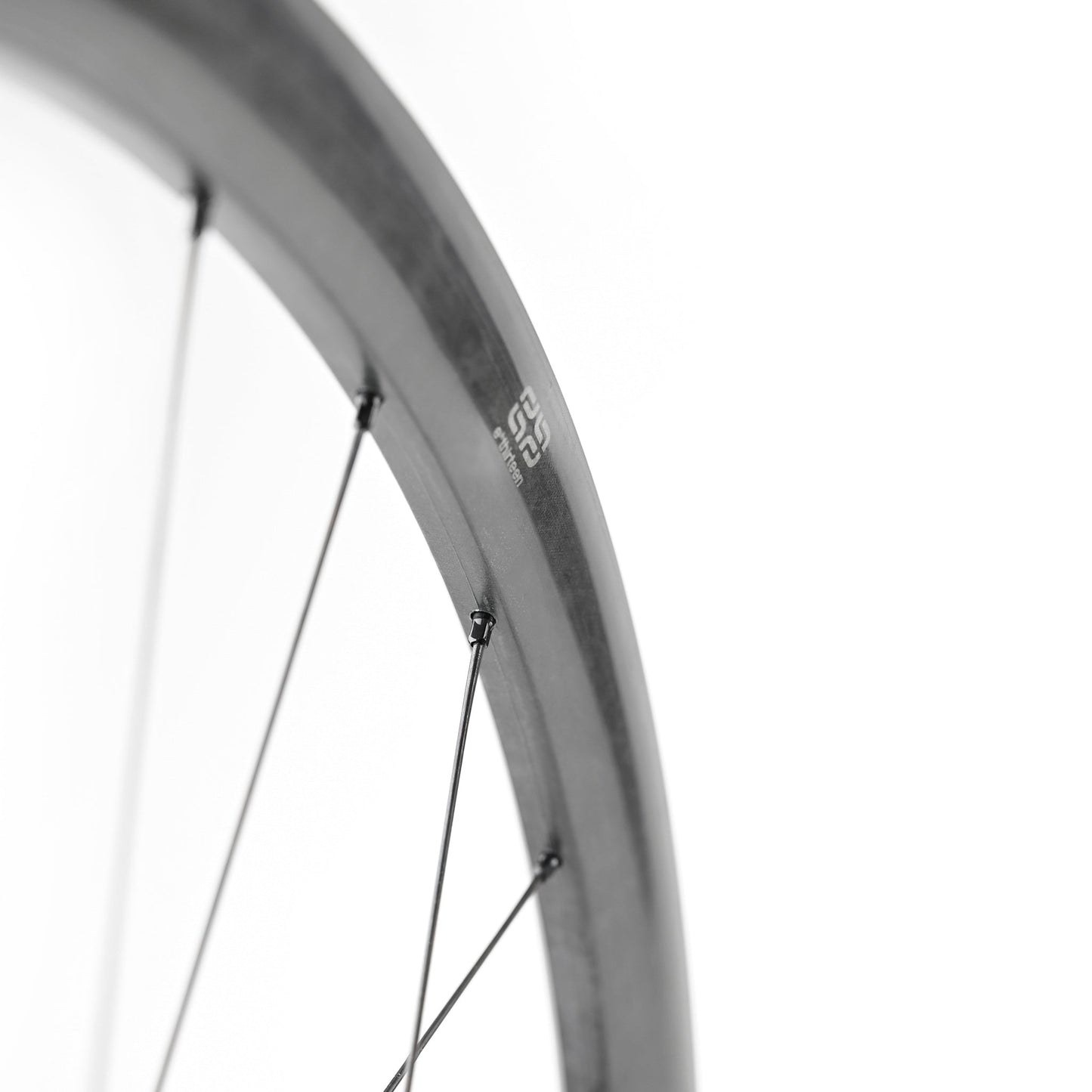

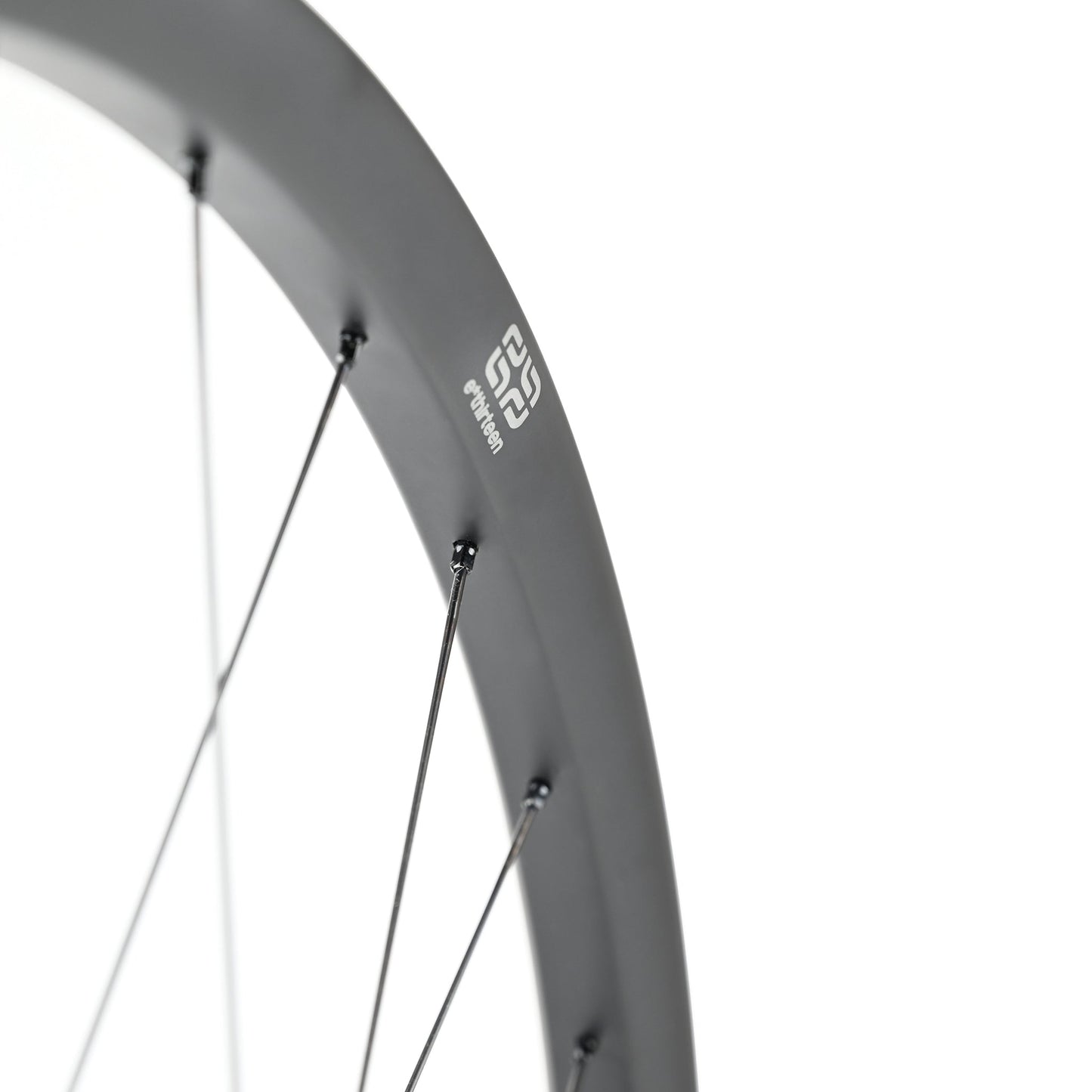

IW24 Raw unpainted carbon - IW28 Matte black painted carbon
Compatibility
Maximum recommend tire width for IW24 is 2.0-2.3” wide - Maximum recommend tire width for IW28 is 2.1-2.4” wide
Drilling
IW28 28h Front, 28h Rear
IW24 24h Front, 28h Rear
Engagement
6 Degree engagement
Freehub Mount

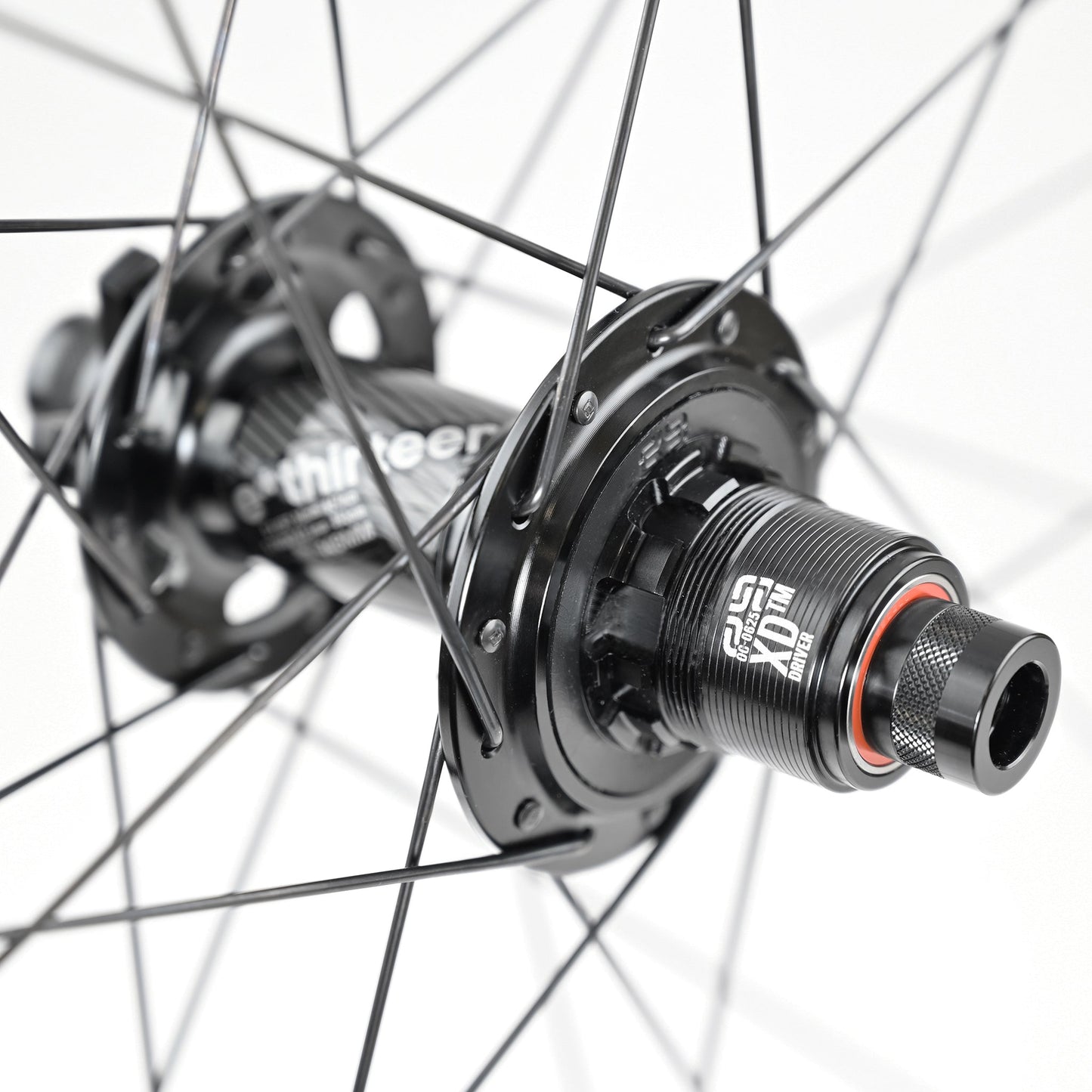

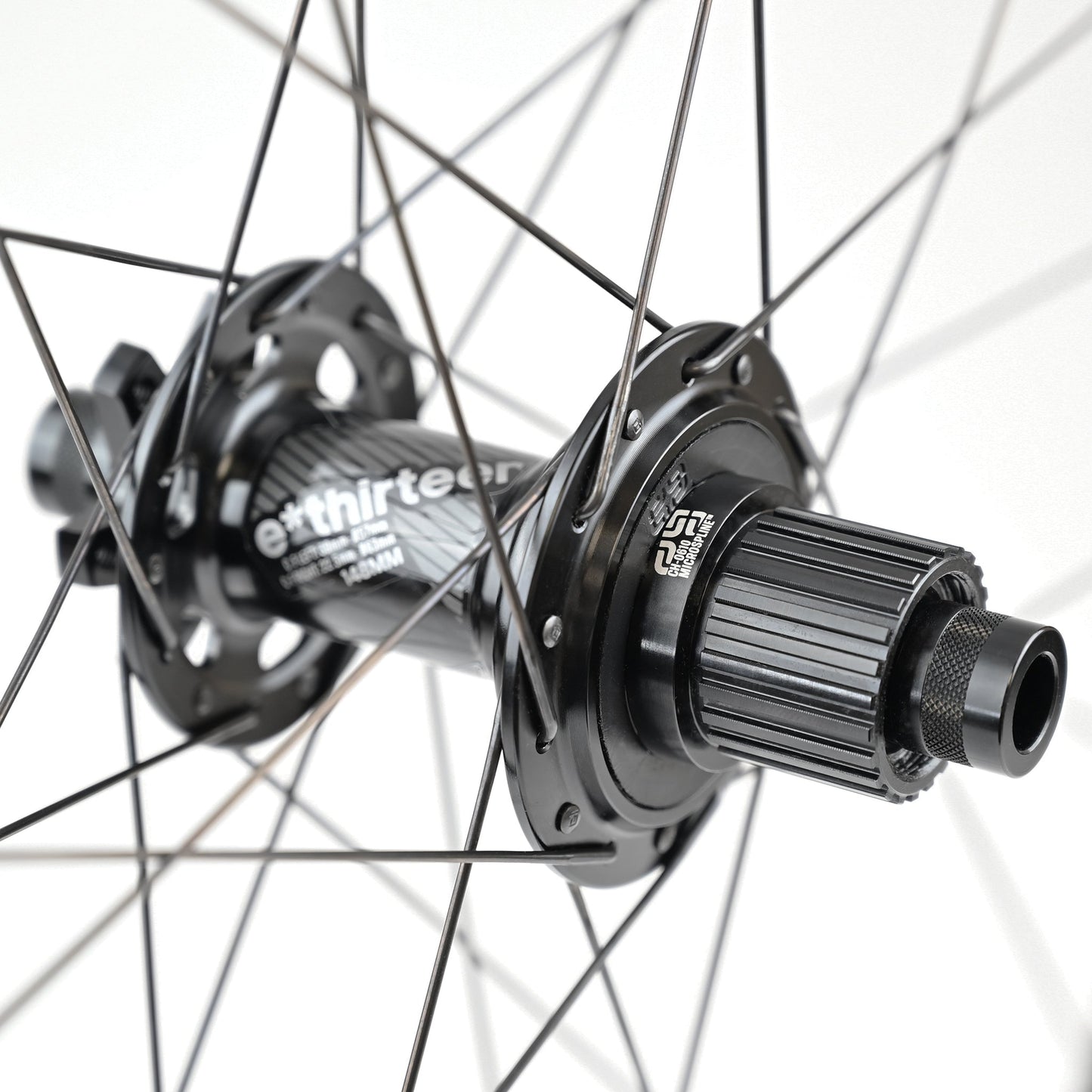

XD™ or Shimano™ Microspline™ Driver
Hub

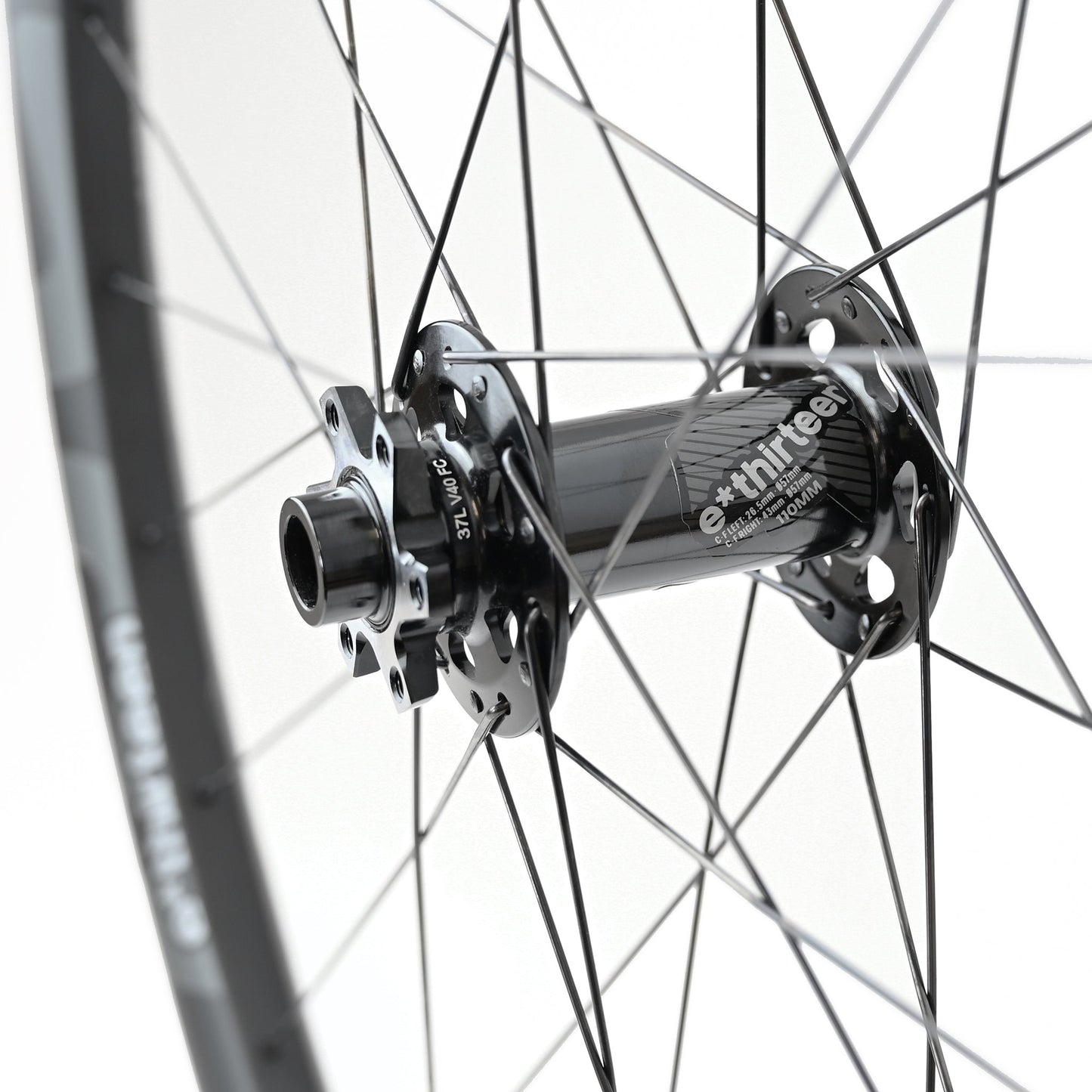

Ultralight fully machined aluminum hub shell with aluminum axle
Included
Wheel(s), tubeless tape, tubeless valve, spoke x3, nipple x3, nipple washer x3, 15mm front hub endcaps
Size
Front 29'' 15x110mm, Rear 29'' 12x148mm
Spokes/Nipples
Alloy nipples with washers IW24 DT Swiss Revolution Spokes, triple butted x28 IW28 DT Swiss Comp Race, triple butted x28
Weight
Single wheel weight w/valves + tape
Front 29: 632g
Rear 29 XD Driver: 870g
Width
IW24 Internal width 24mm - IW28 Internal width 28mm
